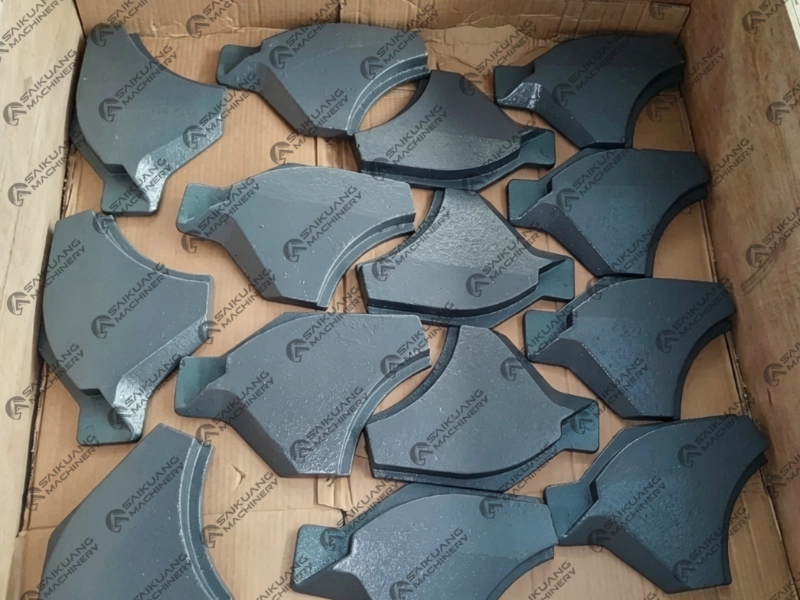

LIMING 7611 VSI Crusher Spare Parts
The LIMING 7611 VSI Crusher is designed for medium and fine crushing in sand production and aggregate shaping. It is one of the most popular models in the VSI series and is manufactured by several well-known Chinese crushing equipment brands, including Shanghai Shibang Machinery and Henan Liming Heavy Industry.
When it comes to keeping your LIMING 7611 VSI sand-making machine running at peak efficiency, choosing the right LIMING 7611 VSI Crusher Spare Parts is essential. This vertical shaft impact crusher is widely used for sand manufacturing and aggregate shaping, and its performance depends heavily on the quality and fit of its wear components.
LIMING 7611 VSI Crusher Spare Parts list:
| No. |
Part Name |
Part number |
| 1 |
Motor belt pulley |
VSI7611-2-101 |
| 2 |
Main shaft belt pulley |
VSI7611-6-101 |
| 3 |
Bearing locating sleeve |
VSI7611-6-107 |
| 4 |
Bearing sleeve |
VSI7611-6-106 |
| 5 |
Bearing sleeve upper locating disc |
VSI7611-5-117 |
| 6 |
Bearing sleeve lower locating disc |
VSI7611-5-116 |
| 7 |
Lower seal sleeve |
VSI7611-6-102 |
| 8 |
Lower bearing cover |
VSI7611-6-102 |
| 9 |
Upper bearing cover |
VSI7611-6-110 |
| 10 |
Throwing wheel guard ring |
VSI7611-8-102 |
| 11 |
Discharge liner ring |
VSI7611-3-101 |
| 12 |
Impact block (peripheral guard plate) |
VSI7611-3-102 |
| 13 |
Upper impact guard plate |
VSI7611-3-105 |
| 14 |
Hopper liner ring |
VSI7611-3-111 |
| 15 |
Lower impact guard plate |
VSI7611-3-112 |
| 16 |
Upper deflector plate |
VSI7611-8-103 |
| 17 |
Lower deflector plate |
VSI7611-8-104 |
| 18 |
Wear plate |
VSI7611-8-107 |
| 19 |
Feed tube |
VSI7611-3-110 |
| 20 |
Impact block / anvil |
VSI7611-8-106 |
| 21 |
Feed cone / distributor cone |
VSI7611-8-105 |
| 22 |
Guard block |
VSI7611-8-108 |
| 23 |
Hammer head |
VSI7611-8-2-101 |
| 24 |
Main shaft |
VSI7611-6-108 |
| 25 |
Bearing sleeve assembly |
VSI7611-6 |
| 26 |
Rotor assembly |
VSI7611-8-1 |
| 27 |
Hydraulic manifold block |
VSI7611-3-110 |
| 28 |
Upper dust protection disc |
VSI7611-6-111 |
| 29 |
Rotor impeller |
VSI7611-8-1-1 |
| 30 |
Lower shaft sleeve |
VSI7611-3-4-1-102 |
| 31 |
Upper shaft sleeve |
VSI7611-3-4-1-104 |
| 32 |
Hand wheel |
VSI7611-3-5-111 |
These parts work together to ensure even material distribution, protect the rotor and crushing chamber, and maintain consistent product gradation. Their wear rates vary depending on feed material hardness, abrasiveness, and operating parameters, but timely replacement of worn LIMING 7611 VSI Crusher Spare Parts is essential to avoid reduced capacity and damage to non-wearing components.
Material Selection for LIMING 7611 VSI Crusher Spare Parts
Saikuang is a professional manufacturer of aftermarket VSI crusher wear parts, specializing in the production of fully compatible LIMING 7611 VSI Crusher Spare Parts. We offer three material options for the LIMING 7611 VSI Crusher Spare Parts: High Chrome 26%, High Chrome 26% with Ceramic, and High Chrome 26% with Tungsten Carbide, matching different customer working conditions. All products undergo strict heat treatment, hardness testing, dimensional inspection and non‑destructive flaw detection to eliminate casting defects, ensure stable dynamic balance and excellent wear resistance, completely matching the working performance of original parts.
High Chrome 26%
This is the standard high‑chrome material with 26% chromium content. It has balanced wear resistance and impact toughness, fine and uniform internal metallographic structure, and strong resistance to particle scratching and abrasive wear. It is suitable for medium‑abrasive materials such as limestone, river pebble, recycled concrete and ordinary aggregate. It can meet the daily sand making and shaping needs of conventional crushing plants, with cost‑effective performance and stable service life.
High Chrome 26% with Ceramic
Based on the 26% high‑chrome matrix, this grade is reinforced with embedded ceramic particles. The combination perfectly merges the high toughness of the metal matrix with the ultra‑high wear resistance of ceramic. It is mainly used for crushing high‑hardness materials such as granite, basalt and quartz stone. Compared with standard high chrome 26%, the ceramic‑reinforced LIMING 7611 VSI Crusher Spare Partsdelivers significantly longer service life, reducing frequent replacement and production shutdown loss.
High Chrome 26% with Tungsten Carbide
This grade further enhances the 26% high‑chrome matrix with tungsten carbide reinforcement. Tungsten carbide provides extreme hardness and excellent anti‑abrasion performance, making it ideal for the most demanding high‑abrasion and high‑impact applications. It is particularly suitable for crushing hard rock, ore and other highly abrasive materials. The tungsten carbide reinforced LIMING 7611 VSI Crusher Spare Partsoffers the longest wear life among the three options, effectively minimizing downtime and maximizing productivity.
SAIKUANG — Your Reliable Supplier of LIMING 7611 VSI Crusher Spare Parts
For LIMING 7611 VSI Crusher Spare Parts, SAIKUANG offers:
OEM-Level Fit: SAIKUANG guarantees 100% part adaptability. Our LIMING 7611 VSI Crusher Spare Parts are engineered to match original dimensions and mounting configurations, ensuring correct seating and material flow without the need for modification.
Premium Materials: We supply VSI wear parts in Mn13Cr2, Mn18Cr2, Mn22Cr2, high chromium, high chromium with ceramic, martensitic, and martensitic with ceramic grades. Our VSI parts cover a wide range of popular models, including Metso Barmac B Series, Sandvik CV Series, Trio TV Series, and Terex Canica Series.
Superior Wear Solutions: SAIKUANG offers better material solutions than standard OEM specifications. For example, we supply high chromium 26% with ceramic or tungsten carbide for anvils and impeller shoes, and high chromium 28% with high hardness for table liners and edge liners.
Cost-Effective Solution: As an aftermarket supplier, SAIKUANG provides competitive pricing without compromising on quality.
Fast Delivery: We maintain a large inventory of common VSI wear parts to minimize customer downtime and support continuous production.
Contact Us
If you are looking for high-quality LIMING 7611 VSI Crusher Spare Parts — including rotor tips, impact blocks, strike guards, runner plates, feed tubes, dividing cones, and wear-resistant plates — SAIKUANG is ready to provide reliable products and excellent service. Contact us today for a quotation or technical consultation.
