Why Cone Crusher Parts Need to Be Replaced？

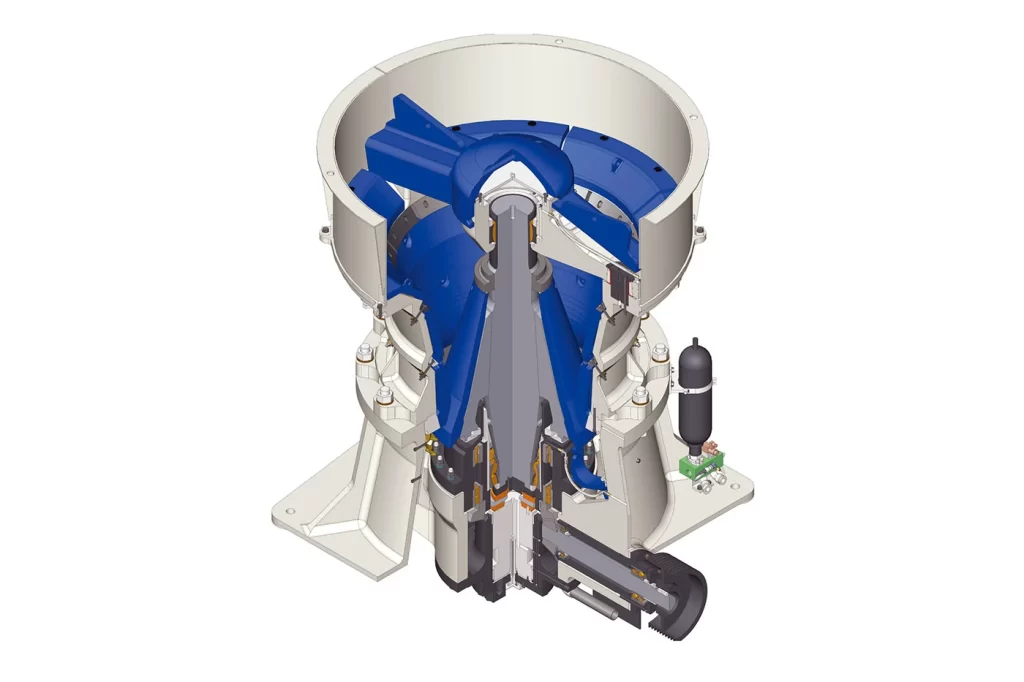

A cone crusher crushes materials through two key components: a stationary concave bowl liner and a rotating mantle. When raw materials enter the crushing cavity, the moving mantle squeezes stones against the fixed concave liner. Continuous high pressure breaks large rocks into small finished aggregates.
The gap between the mantle and concave controls the final output size. All crushing work relies on durable cone crusher wear parts to avoid fast abrasion and machine failure.
Main Cone Crusher Parts and Their Functions
Every cone crusher consists of fixed structural parts, transmission parts and wearable parts. Each component plays an irreplaceable role in stable operation.

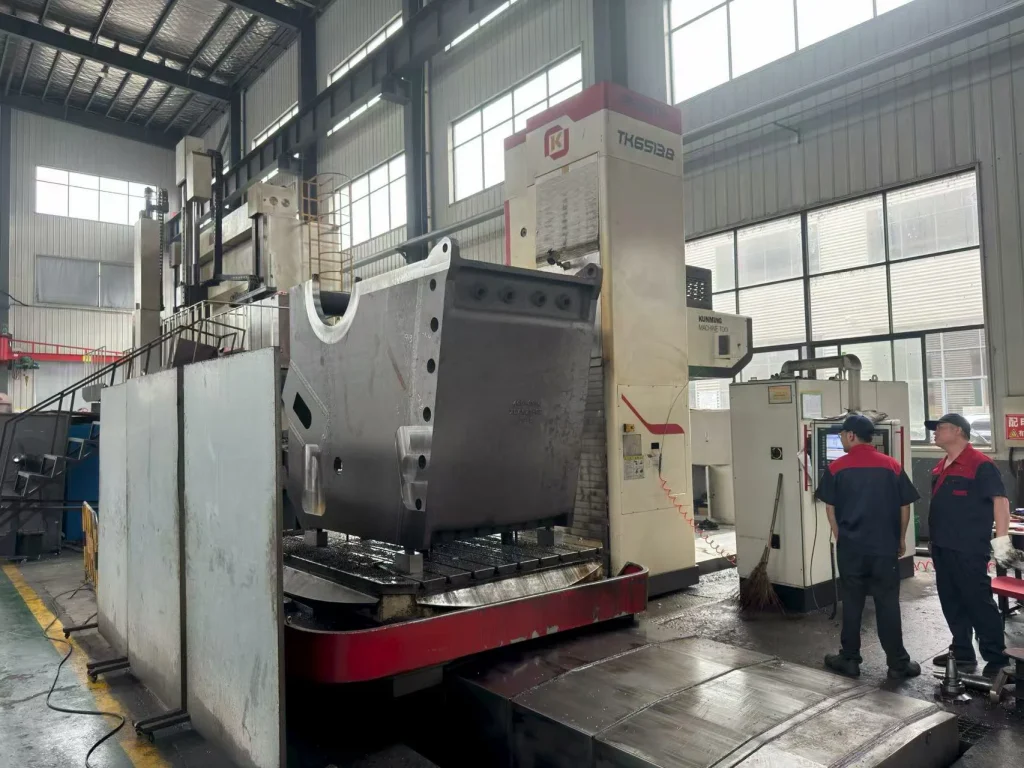

1. Crusher Frame
The frame is the main body structure of the cone crusher. It supports all internal parts and bears strong vibration and impact during crushing. A solid frame ensures stable machine operation and protects internal components from structural damage.

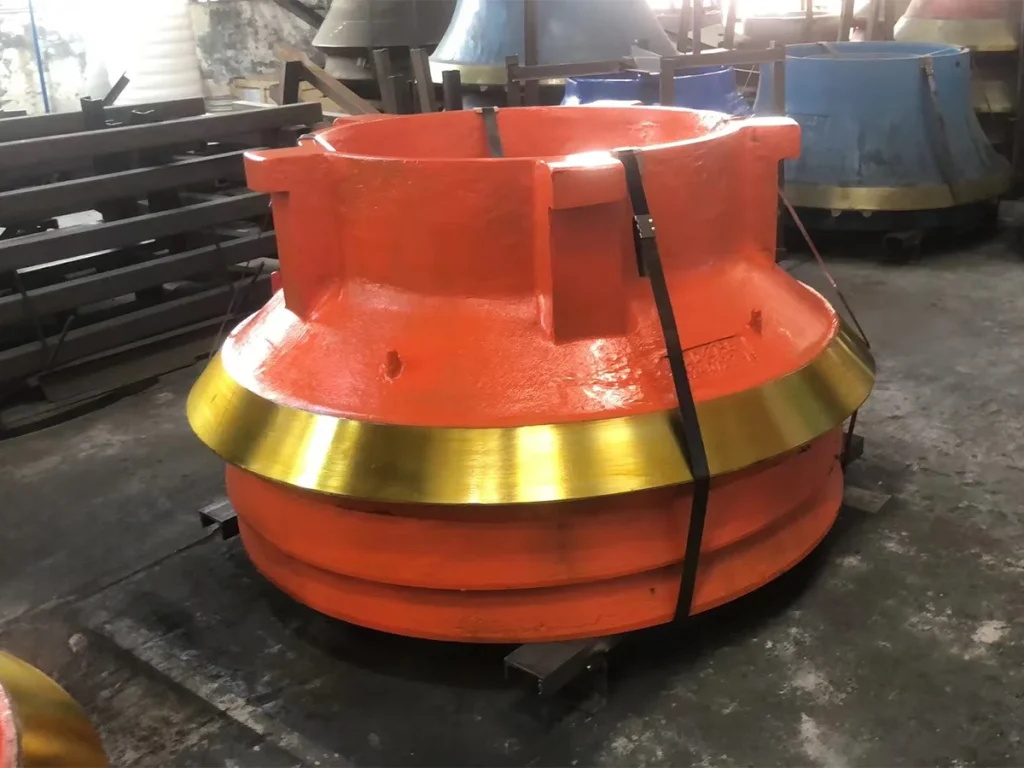

2. Mantle

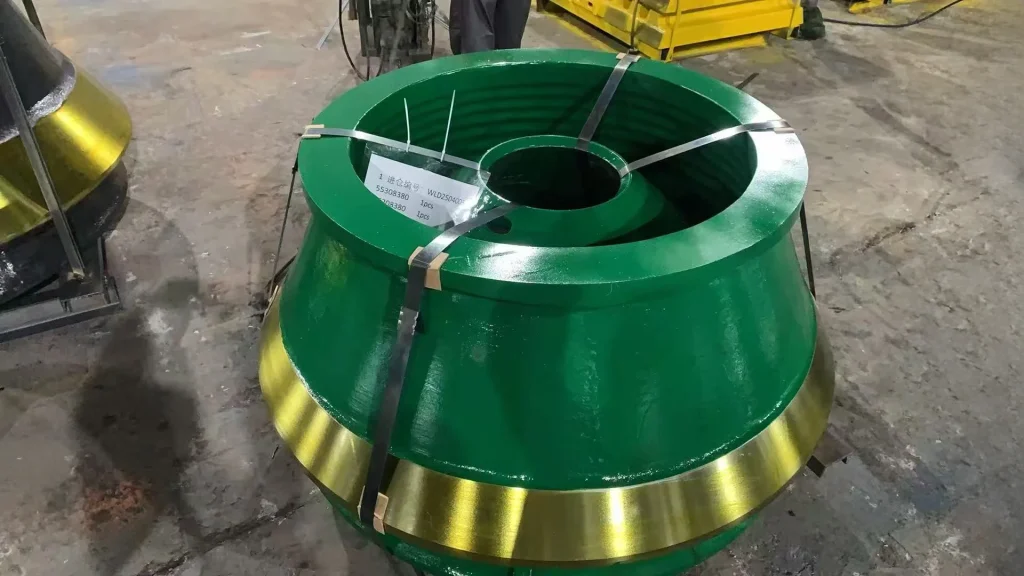

The mantle is the rotating moving cone part. It rotates and squeezes raw materials with the concave liner. As the most consumed cone crusher wear part, the mantle contacts hard stones every day. High wear resistance and good toughness can effectively extend service life and reduce shutdown frequency.
3. Concave / Bowl Liner
The concave (bowl liner) is the fixed upper lining part. It matches the mantle to complete material crushing. Long-term friction and impact cause serious wear. Timely replacement of the concave guarantees qualified finished particle size and stable crushing capacity.
4. Eccentric Shaft & Eccentric Bushing
The eccentric shaft drives the rotary swing motion of the mantle. Cooperating with the eccentric bushing, it provides stable crushing stroke. Precision-machined eccentric parts ensure smooth rotation and avoid abnormal vibration and part abrasion.
5. Main Shaft & Main Shaft Bushing
The main shaft supports the entire mantle and bears huge crushing pressure. It keeps the rotating system balanced and aligned. Damaged or misaligned main shaft parts will cause poor crushing effect and even serious machine breakdowns.
6. Adjustment Ring and Clamping Parts
The adjustment ring controls the CSS (closed side setting) to adjust discharge particle size. The clamping system locks the adjustment ring firmly to prevent loosening during operation. These parts ensure adjustable and consistent product size for different production needs.
7. Drive System (Motor & Transmission)
The motor and transmission device provide power for the whole machine. Stable power output ensures continuous heavy-load crushing without stalling or speed drop.
8. Feed Hopper
The feed hopper guides raw materials into the crushing cavity evenly. A well-designed hopper avoids material blockage and keeps continuous feeding efficiency.

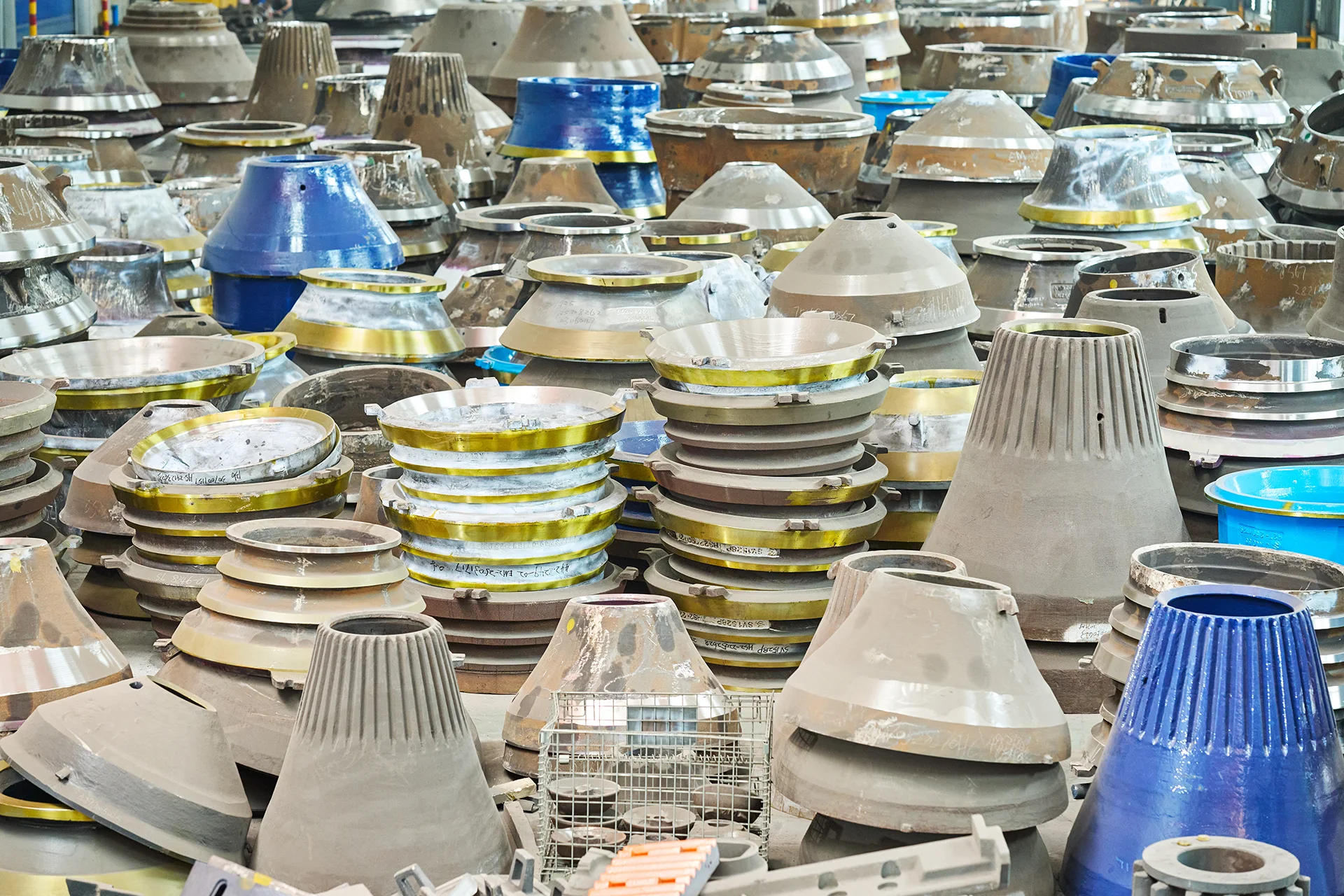

Core Wear Parts of Cone Crusher
Most cone crusher failures are caused by worn accessories. The most important wearable cone crusher parts include:
-
Mantle
-
Concave / Bowl Liner
-
Eccentric Bushing & Main Shaft Bushing
-
Thrust Bearing / Bronze Thrust Ring
-
Torch Ring (Sacrificial Ring)
-
Adjustment Ring & Locking Nut
-
Feed Hopper Liners
High-quality wear-resistant materials (high manganese steel, alloy steel, bimetallic composite steel) greatly reduce replacement times and lower overall operation costs.
Practical Maintenance Tips for Cone Crusher Parts
Good maintenance can double the service life of cone crusher parts and improve production efficiency:
-
Regular inspection: Check mantle, concave and bushings daily to find early wear signs.
-
Timely replacement: Replace worn parts before complete failure to prevent secondary damage to main equipment.
-
Standard lubrication: Lubricate main shaft and eccentric shaft regularly to reduce friction loss.
-
Keep precise alignment: Ensure rotating parts are balanced to avoid abnormal vibration and partial wear.
Mainstream Cone Crusher Models & Saikuang Supporting Parts
Saikuang supplies full-series aftermarketcone crusher parts for global mainstream cone crusher brands and models. All replacement parts achieve 100% OEM interchangeability.
1. Metso Series
| Nordberg Symons | Nordberg Omnicone | Nordberg HP Series | Nordberg GP Series | Nordberg MP Series | Metso MX Series | Lokotrack LT Series |
|---|---|---|---|---|---|---|
| 2′ 3′ 4′ 4¼’ 4800 5½’ 5100 7′ |
1144 1352 1560 937 |
HP100 HP200 HP3 HP300 HP4 HP400 HP5 HP500 HP6 HP900 |
GP100 GP100S GP220 GP200S GP330 GP300S GP550 GP500S GP7 |
MP800 MP1000 MP1250 MP2500 |
MX3 MX4 |
LT200HPS LT200HP LT300HP LT300GP LT220D LT330D |
2. Sandvik Series
| Sandvik CH Series | Sandvik CS Series | Sandvik QH Series |
|---|---|---|
| CH420 CH430 CH440 CH660 CH830i CH840i CH860i CH865i CH870i CH890i CH895i |
CS420 CS430 CS440 CS660 CS840i |
QH441 QH332 QS332 UH640 US440E US440i UH440i UH440E |
3. Terex Series
| Terex Powerscreen | Terex Finlay | Terex Cedarapids | Terex Cedarapids |
|---|---|---|---|
| 1000 Maxtrak 1000SR 1150 Maxtrak 1300 Maxtrak 1500 Maxtrak |
C-1554 C-1550 C-1550P C-1545 C-1545P C-1540 C-1540P C-1540RS |
TC1000 TC1150 TC1300 TG120 TG220 TG320 TG420 TG820 TG1020 |
TGS120 TGS220 TGS320 TGS420 MVP380X MVP450X MVP550X |
4. Symons，Trio，Telsmith and Other General Models
Saikuang also supports full-range wear parts for Symons, Trio, Telsmith and other common cone crusher equipment, covering mining, quarry and construction waste crushing scenarios.
Why Choose Saikuang Cone Crusher Parts
Saikuang focuses on the R&D and production of high-quality cone crusher parts. We adopt high manganese steel, high chrome alloy and bimetallic composite materials to improve wear resistance and impact toughness.
All accessories are strictly tested for hardness, metallographic structure and dimensional accuracy. Compared with ordinary spare parts, Saikuang cone crusher wear parts have longer service life, lower maintenance frequency and more stable operation performance.
Conclusion
Cone crusher parts are the core guarantee of stable crushing production. Understanding component functions and mastering scientific maintenance methods can effectively extend machine service life and reduce production costs.
As a professional manufacturer, Saikuang provides full-series OEM replacement cone crusher parts for Metso, Symons, Sandvik and other mainstream models. If you need customized wear parts or bulk procurement solutions, feel free to contact us for professional technical support and quotation.
