Saikuang Casting is a leading manufacturer of premium-quality blow bars, impact plates, and side liners for Striker 1102 blow bar series impact crushers. We specialize in producing OEM-equivalent blow bars and developing customized alloy solutions for primary and secondary crushers to effectively minimize equipment downtime. Our wear parts are manufactured using:Chrome iron，Ceramic chromium iron，Manganese steel，Titanium carbide (TiC) reinforced manganese steel，Martensitic， Ceramic Martensitic，All of these materials are renowned for their excellent wear resistance and operational stability.

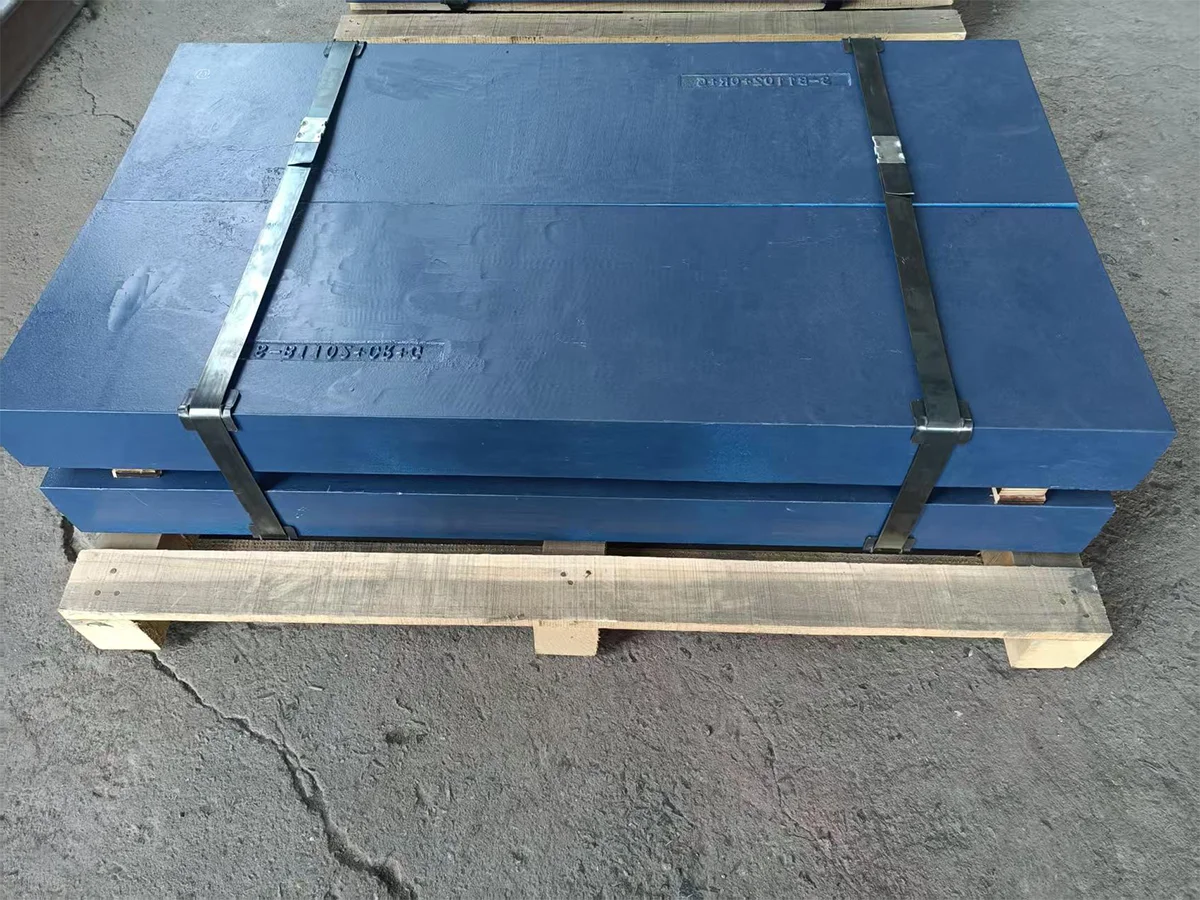

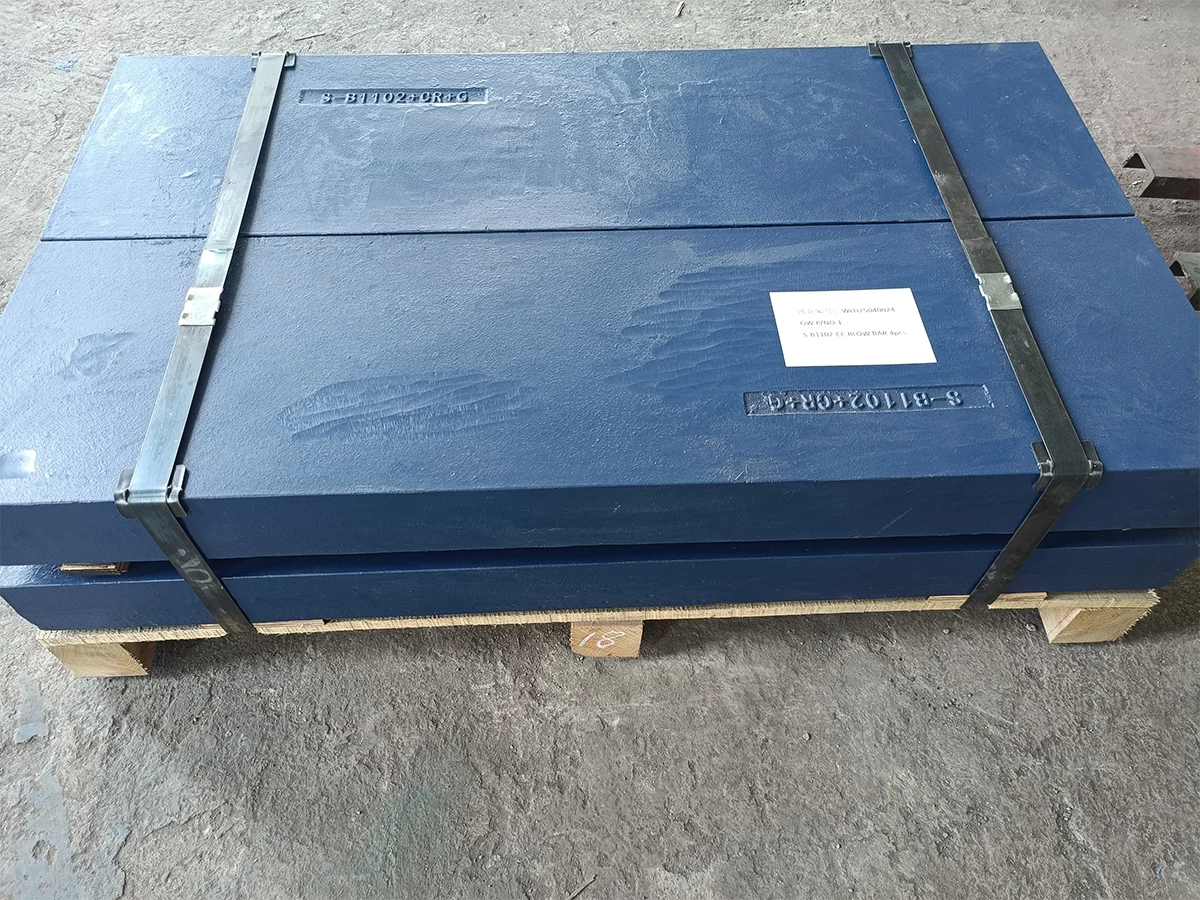

Key Features (For Striker 1102 blow bar):
Perfect Fit:Precision-engineered for seamless compatibility with the Striker 1102 blow bar.
Superior Material:Manufactured from advanced high-chromium steel for maximum abrasion resistance.
Extended Lifespan:Highly durable construction reduces replacement frequency and lowers cost-per-ton.
Optimized Performance:Maintains high crushing efficiency and consistent aggregate output shape.
“All brand names, model names or marks are property of their respective manufacturers. SAIKUANG and OEMs. These terms are used for identification purposes only and are not intended to indicate affiliation with or approval by the OEM. All parts are manufactured, warrantied by SAIKUANG and are not manufactured, purchased or warrantied by the OEM.”
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
Blow bars arethick slabs of metal, typically made of achrome mixture, designed for breaking apart materials like asphalt, concrete, and limestone. They play acritical rolein the crushing process of ahorizontal shaft impactor. The materials used for blow bars are selected based on the function of the impact crusher. When inserted into therotorof horizontal impact crushers, the blow bars rotate athigh speeds, repeatedly striking the material. This continuous action fractures the material until it reaches the appropriate size to pass through the impact crusher chamber.
Moldel Type of Blow bar, Impact plate, Liner for Striker Impactor
Impactor
Striker
Striker
Striker
Striker
Item
Blow bar
Impactor Model
907
1112/1312 -100mm
1112/1312 -120mm
1315
Approx Wt Kg
160
338
400
460
Model part
/
S-B1102
S-B1103
/
Materials Selection for Impactors’Blow Bar & Wear Parts
