Excellent SANDVIK CJ411 Jaw Crusher Liner Introduction
Sandvik CJ type jaw crushers are specifically built for your primary applications where resizing is the key objective. CJ jaw crusher needs to have a good feed level and a homogeneous feed. CJ jaw crushers are of the single-toggle type and feature a deep, symmetrical crushing chamber, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.

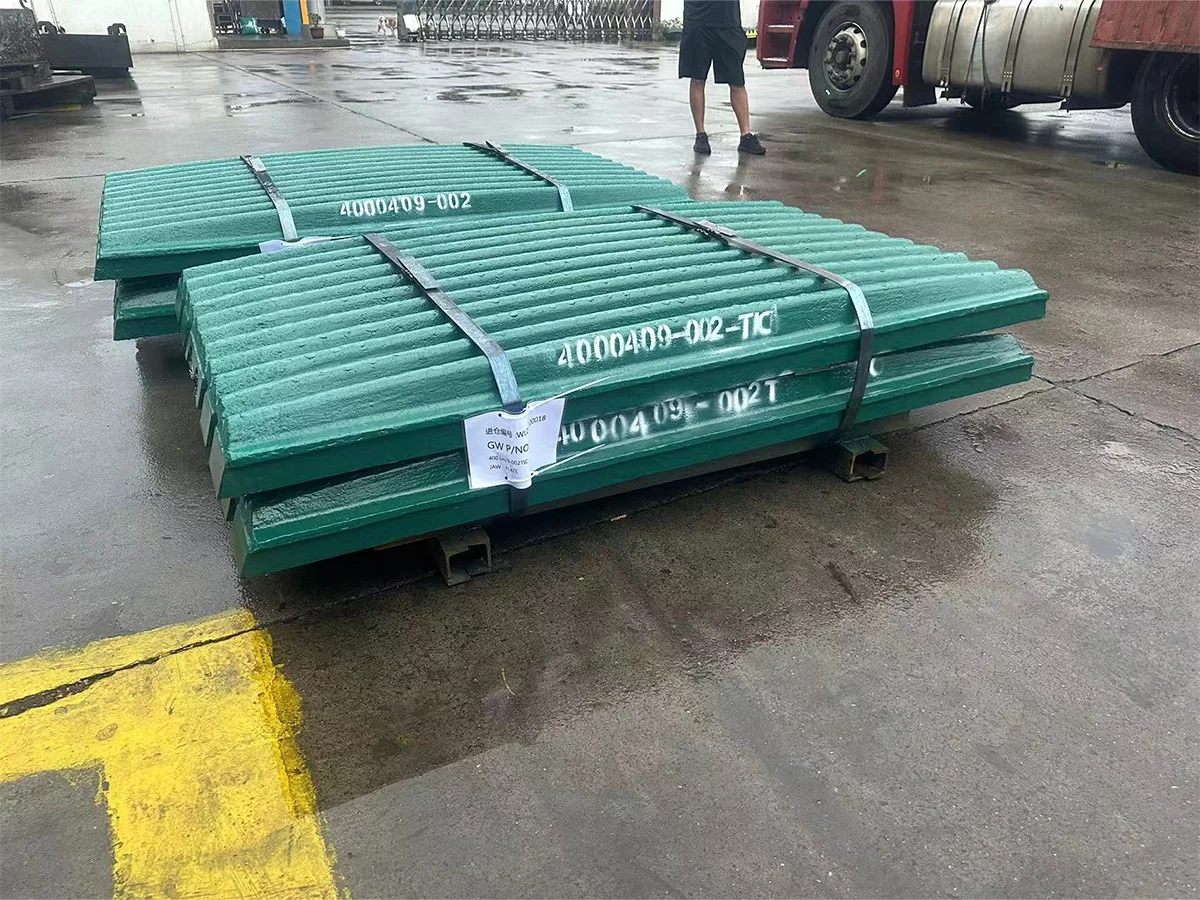

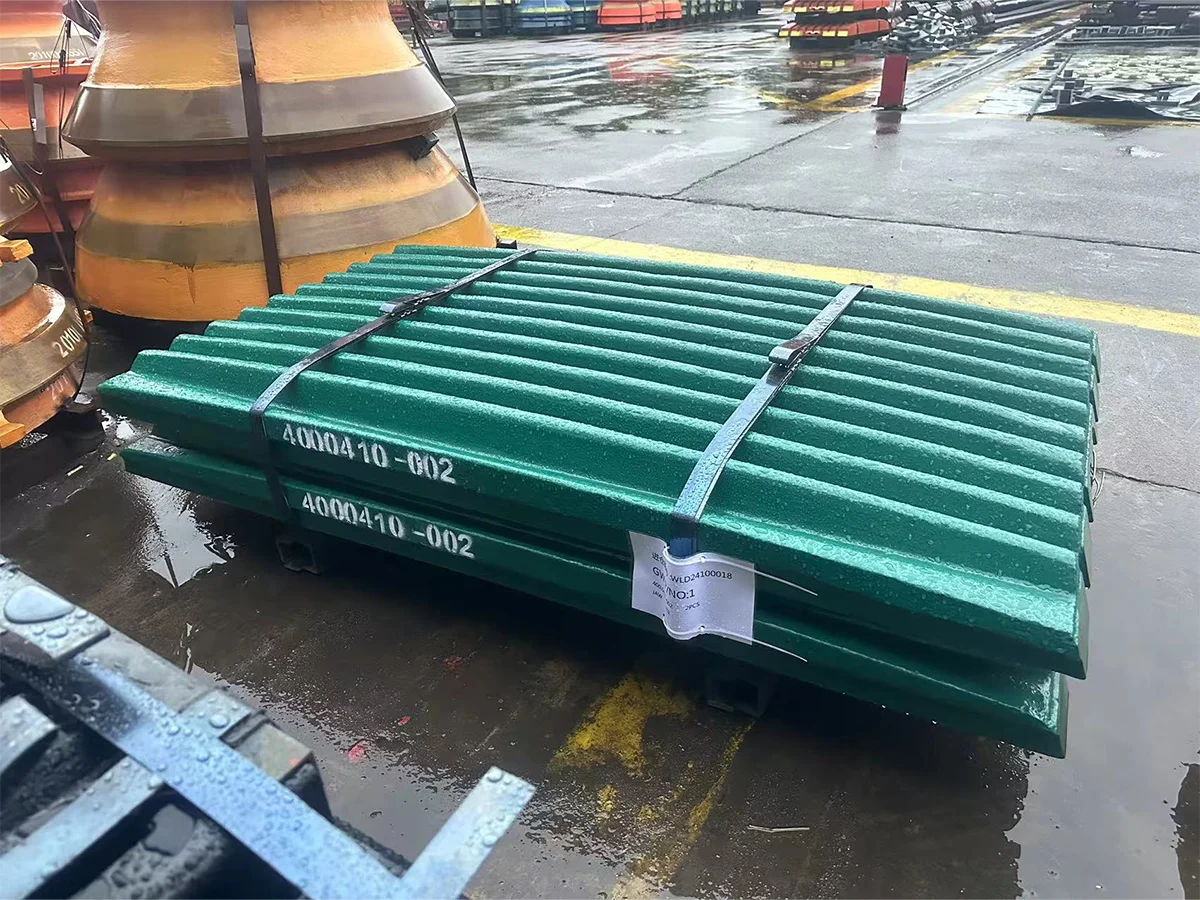

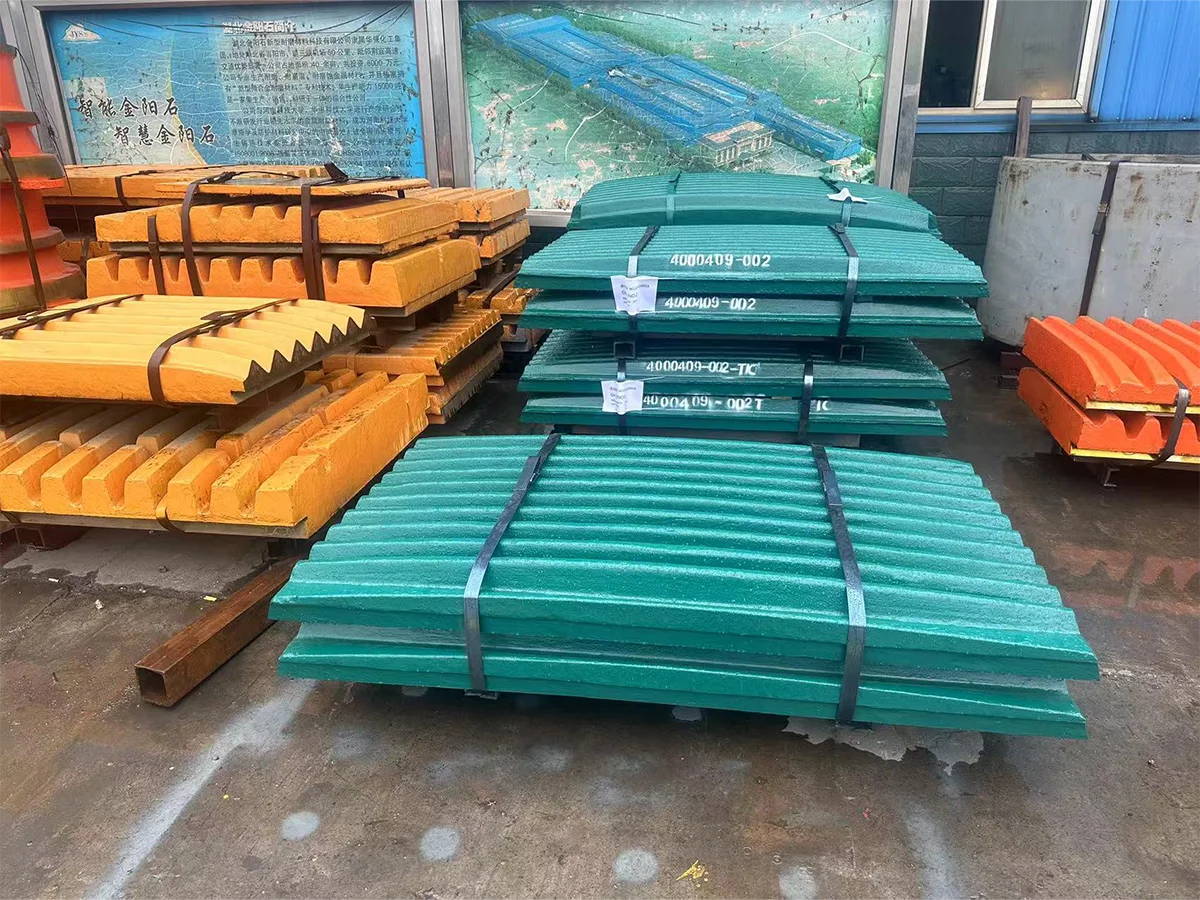

SANDVIK CJ411 jaw crusher liner are precisely engineered to deliver optimal crushing efficiency and extended service life in demanding quarrying and mining applications. Designed for a perfect fit and 100% interchangeability with the original CJ411 model, these liners ensure smooth material flow and consistent product size. Manufactured to strict quality standards from high-grade, wear-resistant manganese steel, they guarantee maximum durability and reliable performance, effectively protecting your crusher and minimizing your cost per ton.
SAIKUANG ‘s aftermarket spare parts for Sandvik CJ jaw crushers can be more part ,inlcuding swing jaw assembly ,pulley , toogle plate , bearing seat ,WEDGE ,PROTECTION PLATE ,ECCENTRIC SHAFT ,BEARING LOCKNUT,TOGGLE SEAT BLOCK , bolt&nut ;
For crushing and Screening crusher parts, spares, liners & internals ,contact SAIKUANG IN CHINA. We offer OEM & aftermarket parts for a large range of cjaw crusher machines
Be sure to quote the OEM part number of your required parts when requesting a quote.
CJ411 Jaw Crusher spare parts moldel list:
| Item |
Part numbers |
Description |
Item |
Part numbers |
Description |
Item |
Part numbers |
Description |
| 01 |
10-314-262-000 |
Cheek plate, upper |
11 |
400.0410-001 |
Jaw Plate Mov C, M1 |
21 |
89-242-894-000 |
Toggle Plate L=600 |
| 02 |
10-314-263-000 |
Cheek plate, lower |
12 |
400.0433-001 |
Jaw Plate Mov CC, M1 |
22 |
89-242-895-000 |
Toggle Seat, upper |
| 03 |
840.0678-00 |
Screw for cheek plate |
13 |
10-314-385-000 |
Clamping bar, Stationary |
23 |
89-242-895-000 |
Toggle Seat, lower |
| 04 |
845.0387-00 |
Nut for cheek plate |
14 |
10-314-385-000 |
Clamping bar, Mov |
24 |
10-314-522-000 |
Toggle Seat holder |
| 05 |
847.0124-00 |
Washer for cheek plate |
15 |
10-214-384-000 |
Deflector plate |
25 |
17-201-552-501 |
Toggle seat retainer |
| 06 |
402.4720-01 |
Flexible washer for cheek plate |
16 |
59-942-843-001 |
Screw clamping bar, Mov |
26 |
53-367-176-500 |
Side block |
| 07 |
402.4721-01 |
Steel washer for cheek plate |
17 |
00-921-203-033 |
Nut clamping bar |
27 |
400.1575-901 |
Pin for retraction bar |
| 08 |
400.0436-001 |
Jaw plate Stationary WT (Z) M1 |
18 |
00-921-224-133 |
Lock nut clamping bar |
28 |
53-366-419-501 |
Retraction rod |
| 09 |
400.0409-001 |
Jaw plate Stationary C, M1 |
19 |
89-442-690-000 |
Washer for clamping bar |
29 |
400.0450-001 |
Compression spring |
| 10 |
400.0437-001 |
Jaw plate Stationary CC, M1 |
20 |
53-469-827-000 |
Flexible washer clamping bar |
30 |
53-368-317-501 |
Hydraulic jack |
