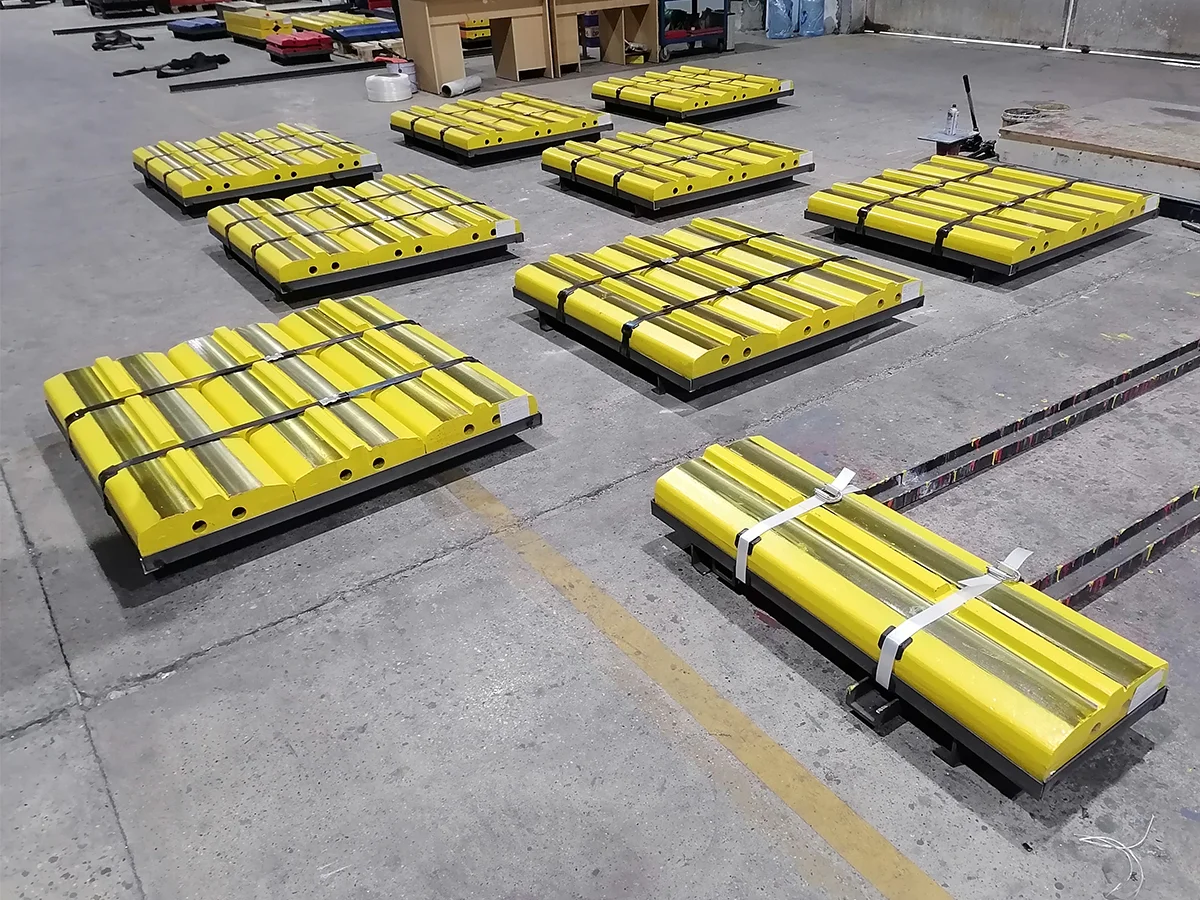

Kleemann Mr110Z Evo (C Shape)-1

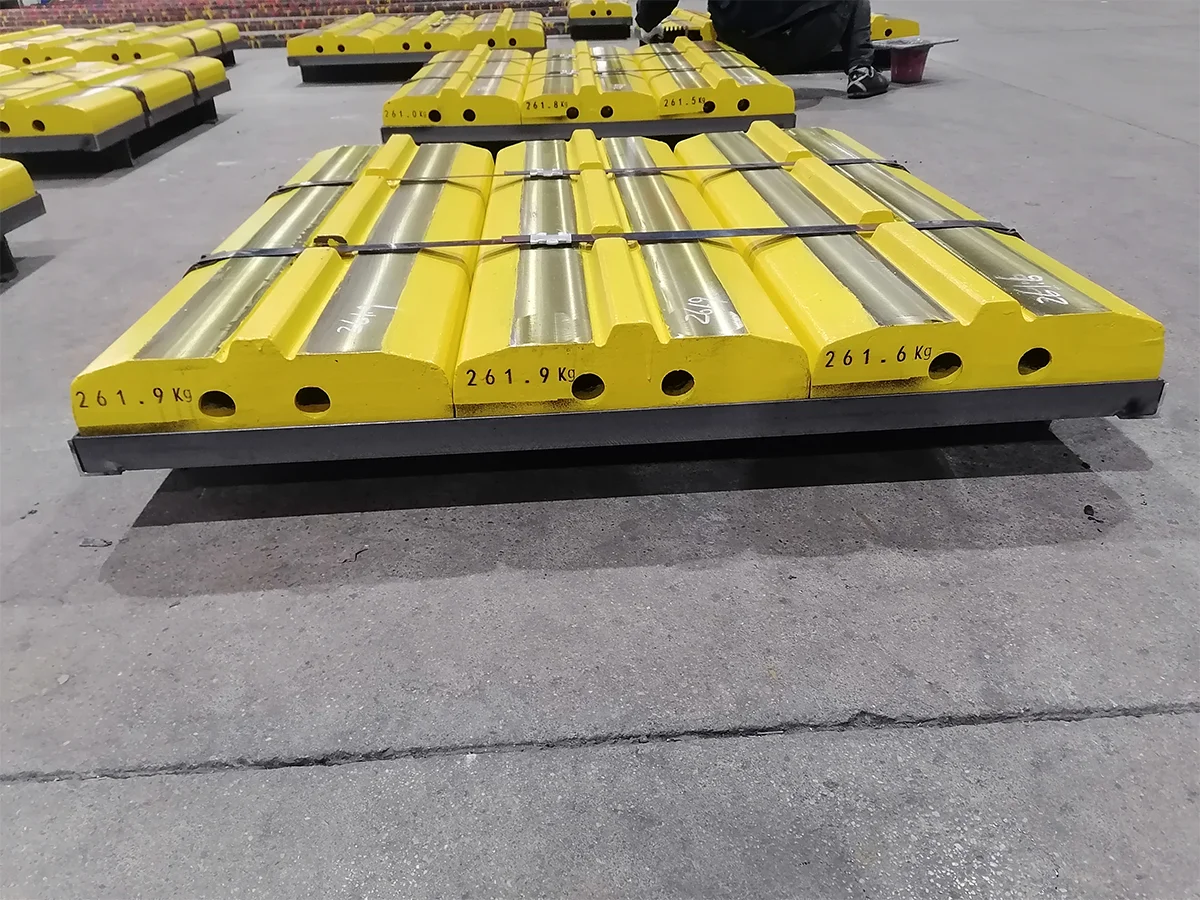

Kleemann Mr110Z Evo (C Shape)-2

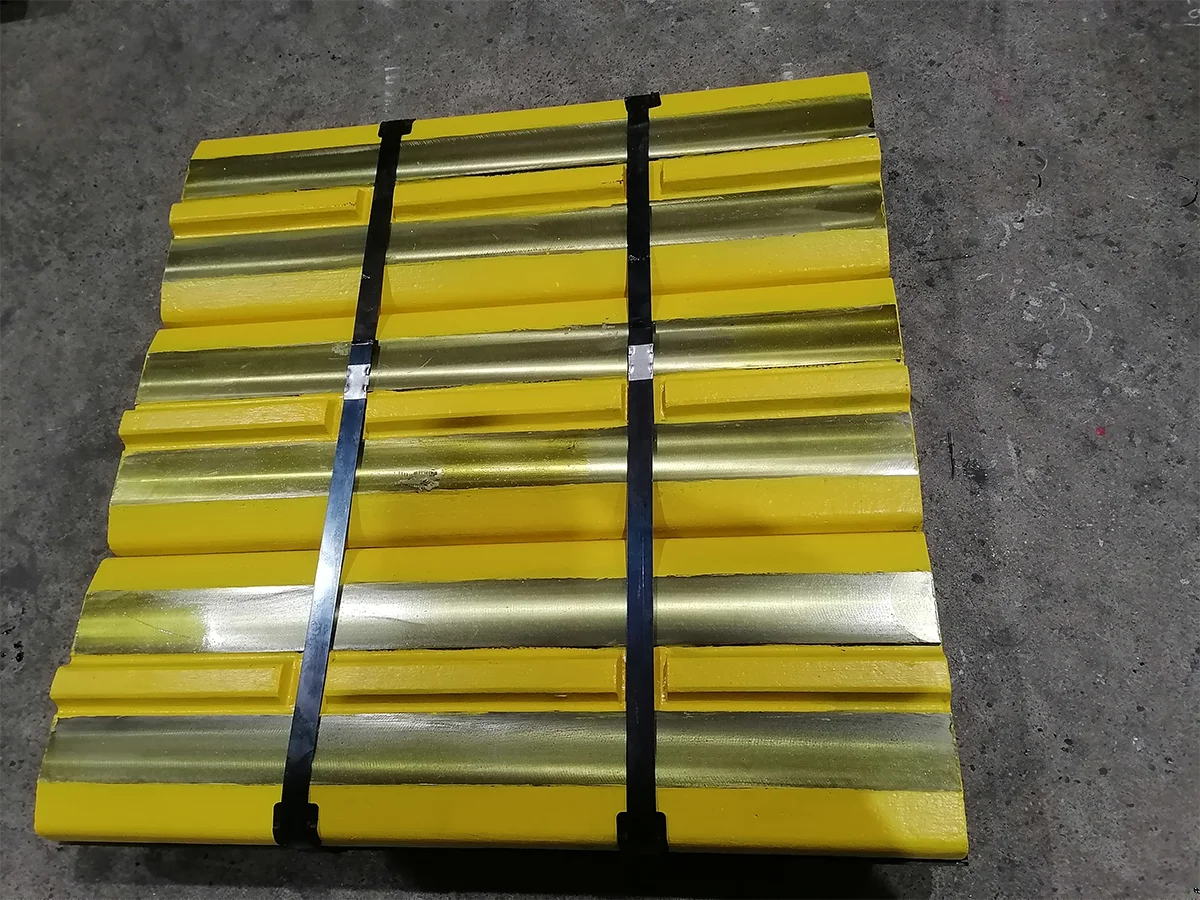

Kleemann Mr110Z Evo (C Shape)-3

KLEEMANN MR110Z EVO (C shape)

Category: Blow Bars

Excellent KLEEMANN MR110Z EVO (C shape)

Saikuang Casting is a leading manufacturer of premium-quality blow bars, impact plates, and side liners for KLEEMANN MR110Z EVO (C shape) blow bar series impact crushers.
We specialize in producing OEM-equivalent blow bars and developing customized alloy solutions for primary and secondary crushers to effectively minimize equipment downtime.
Our wear parts are manufactured using:Chrome iron，Ceramic chromium iron，Manganese steel，Titanium carbide (TiC) reinforced manganese steel，Martensitic， Ceramic Martensitic，All of these materials are renowned for their excellent wear resistance and operational stability.

Key Features (For KLEEMANN MR110Z EVO (C shape) Blow Bar):

  • Perfect Fit: Precision-engineered for seamless compatibility with the KLEEMANN MR110Z EVO (C shape) blow bar.

  • Superior Material: Manufactured from advanced high-chromium steel for maximum abrasion resistance.

  • Extended Lifespan: Highly durable construction reduces replacement frequency and lowers cost-per-ton.

  • Optimized Performance: Maintains high crushing efficiency and consistent aggregate output shape.

“All brand names, model names or marks are property of their respective manufacturers. SAIKUANG and OEMs. These terms are used for identification purposes only and are not intended to indicate affiliation with or approval by the OEM. All parts are manufactured, warrantied by SAIKUANG and are not manufactured, purchased or warrantied by the OEM.”

Contact

Share:

Previous
Keestrack R3 Blow bar
Next
KLEEMANN MR130Z EVO (C shape)

Excellent KLEEMANN MR110Z EVO (C shape) Blow Bar Introduction

Blow bars are thick slabs of metal, typically made of a chrome mixture, designed for breaking apart materials like asphalt, concrete, and limestone. They play a critical role in the crushing process of a horizontal shaft impactor. The materials used for blow bars are selected based on the function of the impact crusher. When inserted into the rotor of horizontal impact crushers, the blow bars rotate at high speeds, repeatedly striking the material. This continuous action fractures the material until it reaches the appropriate size to pass through the impact crusher chamber.

Moldel Type of Blow bar, Impact plate, Liner for KLEEMANN Impactor

Impactor Kleemann Kleemann Kleemann Kleemann Kleemann Kleemann Kleemann Kleemann
Item Blow Bar
Impactor Model MR100Z/ SHB10
(X shape)		 MR110Z EVO
(C shape)		 MR122Z /SHB12
(X shape)		 MR130Z EVO
(C shape)		 MR130Z/SHB13
(S shape)		 MR150Z
(X shape)		 MR150Z
(C shape)		 SHB14
Approx Wt Kg 250 275 318 360 367 440 370
Model part S-B0201 S-B0202 S-B0203 S-B0204 S-B0205 / / S-B0208
OEM Number 2219822,
F20011044		 F20011039
Item Impact plate
Impactor Model MR110Z MR130Z
Approx Wt Kg 46 54
Model part S-C0202 S-C0204

Materials Selection for Impactors’Blow Bar & Wear Parts

Material Code Description Wear Life Feed size Tramp Iron Typical Applications
200S Manganese Short No limitation Allowed Concrete, asphalt slabs recycling, Natural stones etc
200ST Manganese + TiC insert 2x times 200S No limitation Allowed Concrete, asphalt slabs recycling, Natural stones etc
550M Low chrome (Martensitic) Medium < 800 mm Allowed Concrete, asphalt slabs recycling, Natural stones etc
550MC Low chrome (Martensitic)
w/ceramic		 2x times 550M < 800 mm Allowed Concrete, asphalt slabs recycling, Natural stones etc
550MCT Reinforced
Low chrome ceramic		 1.5x times 550MC < 800 mm Allowed Concrete, asphalt slabs recycling, Natural stones etc
550MYT Reinforced
Low chrome NewGen ceramic		 2x times 550MC < 800 mm Allowed Concrete, asphalt slabs recycling, Natural stones etc
600C Medium chrome Long < 400 mm Not allowed Concrete recycling, Natural stones etc
600CC Medium chrome ceramic 2x times 600C < 400 mm Not allowed Concrete recycling, Natural stones etc
600CCT Reinforced
Medium chrome ceramic		 1.5x times 600CC < 400 mm Not allowed Concrete recycling, Natural stones etc
650C High chrome Long < 200 mm Not allowed Concrete recycling, Hard natural stones etc
650CC High chrome ceramic 2x times 650C < 200 mm Not allowed Concrete recycling, Hard natural stones etc
700CCT Reinforced
High chrome		 1.5x times 650CC < 200 mm Not allowed Concrete recycling, Hard natural stones etc
700CX Reinforced
High chrome ceramic		 2x times 650CC < 200 mm Not allowed Hard natural stones, Granites, Quartzes etc
