Tooth Roller Crusher Parts

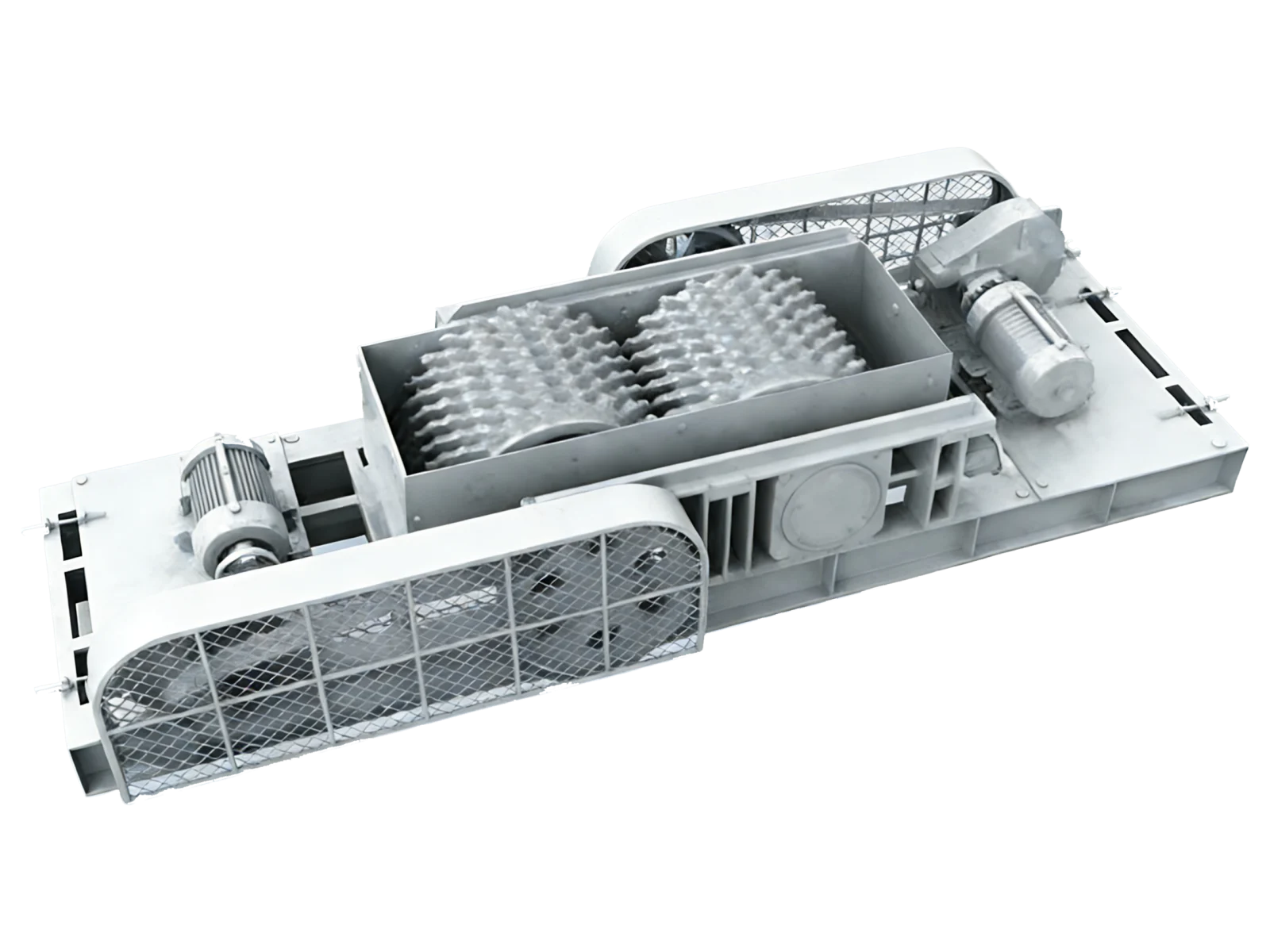

The tooth roller crusher is a type of the roll crusher, distinguished by the design of its roll surfaces, which can be configured as either coarse-toothed or fine-toothed. The tooth profiles are highly customizable to meet specific user requirements, enabling adjustable production parameters to achieve the desired material size. This equipment is particularly effective for processing brittle and soft materials. It is widely employed across various industries, including sintering, coal mining, cement production, silicate processing, glass manufacturing, and ceramics. The crusher is ideal for the coarse and medium-stage crushing of brittle materials with medium or low hardness.

The toothed rollers manufactured by SAIKUANG Casting have been successfully deployed in thousands of toothed roller crushers across dozens of countries and regions, spanning Europe, South America, the Middle East, Africa, and North America. Renowned for their high hardness, exceptional wear resistance, and extreme toughness, these products have earned the trust and acclaim of a vast clientele.

Advantages of Saikuang Casting

OEM quality

Applying the strictest standards and tolerances for guaranteed safety and reliability

Wear parts for your application

Right tooth roller crusher parts for your application for maximum performance

Full support

We are here to assist from choosing  parts to installation, service, and beyond.

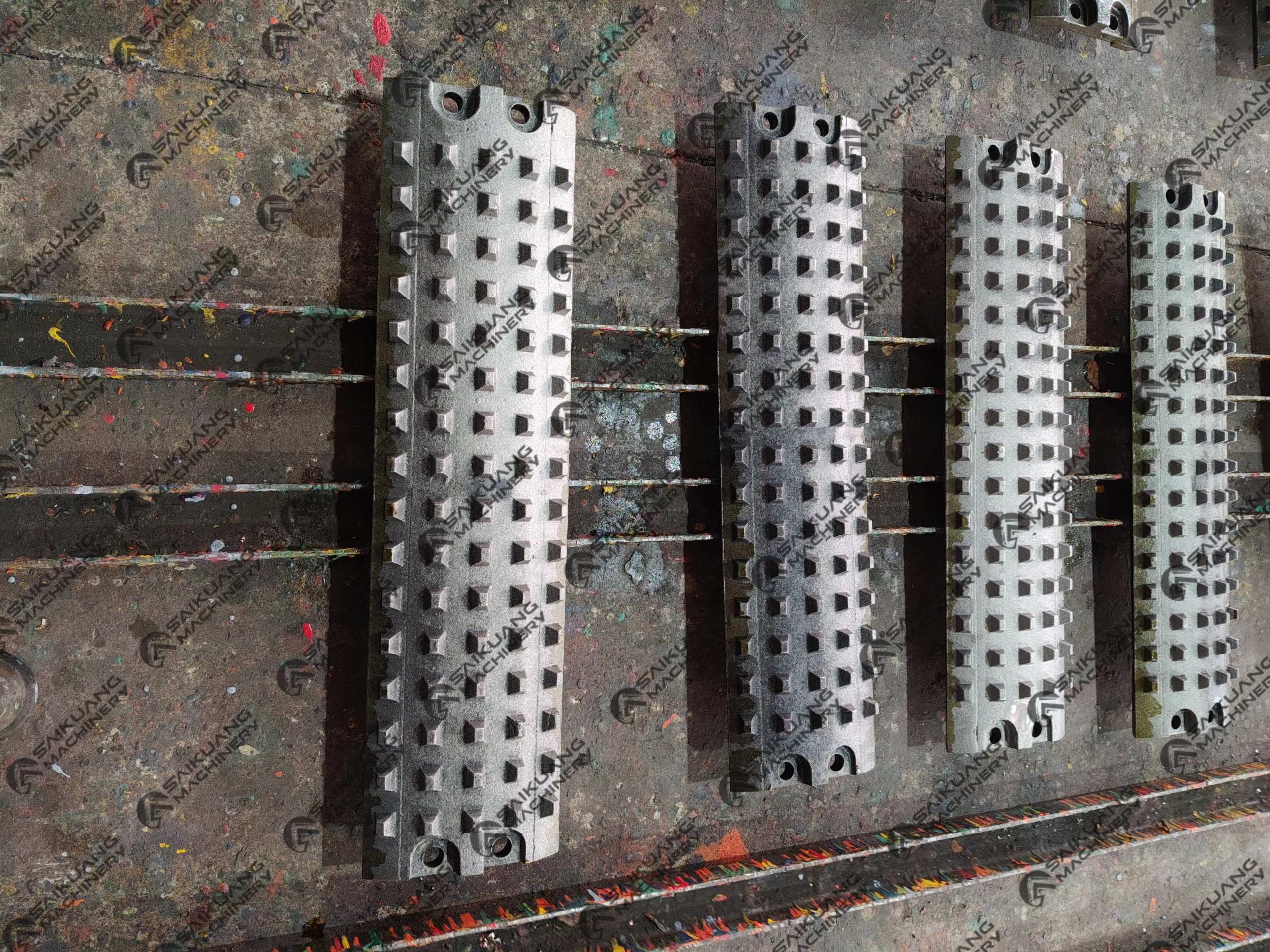

Toothed-Rolls

PRODUCT DETAILS

The tooth profiles available for the rolls encompass a range of designs, such as large or small “wolf-tooth” patterns, specialized coke-cutting teeth, annular teeth, straight-bar teeth, and large plate teeth. These configurations are well-suited for applications with feed sizes of up to 1200 mm, where the required finished product size typically ranges from 10 to 300 mm. The toothed roll crusher is especially effective in medium or coarse crushing scenarios that demand a high proportion of granular material with minimal fines.

SAIKUANG Casting’s toothed rollers are primarily fabricated from high-chromium alloy castings and undergo a specialized refining process, enabling them to meet the demanding requirements of a wide range of complex operating environments. Following a comprehensive quenching and tempering heat treatment, the internal microstructure exhibits an optimal fine-grained structure while retaining ample toughness; furthermore, the surface hardness can reach levels exceeding HRC 60.

Materials Used in tooth roller crusher parts

Material Application Features
Mn18Cr2
Manganese steel
Primary
tooth roll crusher
Superior impact-resistance but wear fast.
Mn18Cr2
Manganese steel
+Tic Inserts
Primary
tooth roll crusher
Superior impact-resistance and wear life is more than 70% increased than Mn18Cr2
Alloy steel Secondary
tooth roll crusher
Moderate Impact-resistance and wear life.
Chrome white iron Tertiary
tooth roll crusher
Longest wear life but brittle

Saikuang Casting’tooth roller crusher parts with strict attention to detail, quality, and consistency. We’ve developed and tested our proprietary heat treat cycle and metallurgy for shredder parts that run tough and wear long.
