Saikuang Casting is a leading manufacturer of premium-quality jaw plates,wall plate, and counterweight block for Exclusive LIMING PEW860 Jaw Plate series jaw crushers.
We specialize in producing OEM-equivalent jaw plates and developing customized alloy solutions for primary and secondary crushers to effectively minimize equipment downtime.
Our wear parts are manufactured using:Chrome iron，Ceramic chromium iron，Manganese steel，Titanium carbide (TiC) reinforced manganese steel，Martensitic， Ceramic Martensitic，All of these materials are renowned for their excellent wear resistance and operational stability.
“All brand names, model names or marks are property of their respective manufacturers. SAIKUANG and OEMs. These terms are used for identification purposes only and are not intended to indicate affiliation with or approval by the OEM. All parts are manufactured, warrantied by SAIKUANG and are not manufactured, purchased or warrantied by the OEM.”
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
PEW860 jaw crusher is a popular jaw crusher worldwide, suitable for crushing ores and rocks with compressive strength not exceeding 280MPa, especially for hard and highly corrosive materials. It is suitable for industrial sectors such as metallurgy, mining, chemical industry, cement, construction, refractory materials, and ceramics. The leading manufacturers are Shanghai SBM and Henan Limining.
Technical Specifications at a Glance
Feed Opening: 860×1100mm
Max Feed Size: 720mm
Discharge Range: 100-225mm
Motor Power: 132-160kW
Weight: ~28 tons

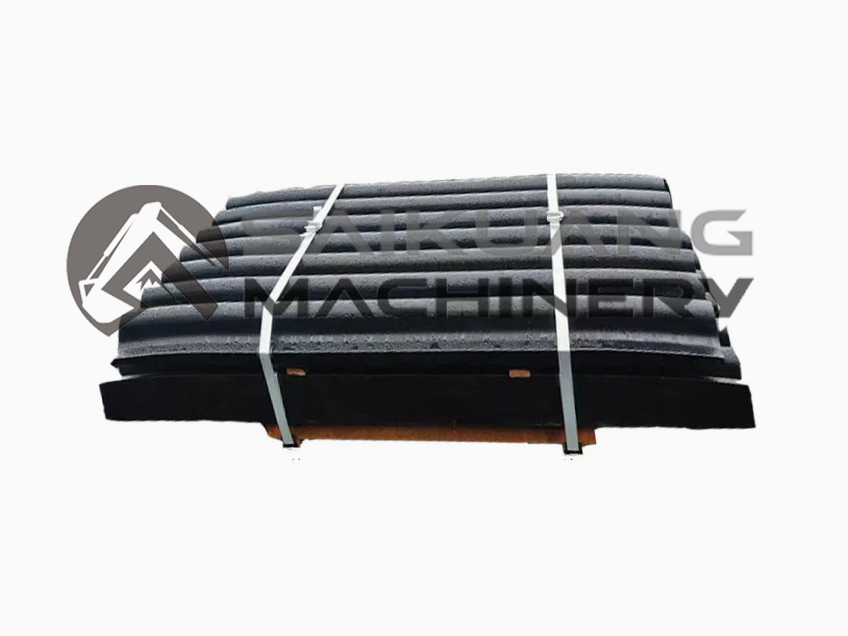

Saikuang Casting: HENAN LIMING PEW860 Jaw Plate
The PEW860 jaw crusher serves as a workhorse in mining and aggregate industries, specifically engineered for processing hard materials like granite, basalt, and iron ore. However, its operational efficiency fundamentally depends on the quality of its vulnerable parts, with the most important component being HENAN LIMING PEW860 Jaw Plate.
SAIKUANG Machinery manufactures HENAN LIMING PEW860 Jaw Plate specifically engineered to enhance the crushing performance of LIMING PEW860 crushers. As the core component of the crushing process, these jaw plates are typically made of high manganese steel or high-chromium alloy. They deliver excellent performance and durability while significantly reducing machine downtime and improving energy efficiency.
To maintain optimal crusher performance, using high-quality, precisely matched replacement parts is essential. The HENAN LIMING PEW860 Jaw Plate, along with other wear parts like Wall Plate and Block, can be sourced from specialized suppliers like SAIKUANG Casting. These replacement components are manufactured under strict quality control systems, guaranteeing 100% adherence to the original dimensions and performance standards of the genuine HENAN LIMING PEW860 Jaw Plate, ensuring seamless integration and reliable operation.
HENAN LIMING PEW860 Impact Crusher Parts List
No.
Drawing No.
Name
Specification
Material
Qty
Unit
Unit Weight (Kg)
1
CJ0911-02-12
Inner Cover Plate
–
HT (Grey Cast Iron)
2
Pcs
80
2
CJ0911-02-17
Outer Cover Plate
–
HT (Grey Cast Iron)
2
Pcs
76.6
3
CJ0911-02-8
Flywheel
–
HT (Grey Cast Iron)
2
Pcs
2335
4
CJ0911-05-1
Motor Pulley
–
HT (Grey Cast Iron)
1
Pcs
205
5
CJ0911-02-19
Counterweight Block
–
ZG (Cast Steel)
2
Pcs
61.5
6
CJ0911-02-10
Inner Retaining Ring
–
ZG (Cast Steel)
2
Pcs
30
7
CJ0911-02-11
Inner Labyrinth Ring
–
ZG (Cast Steel)
2
Pcs
48
8
CJ0911-02-20
Outer Labyrinth Ring
–
ZG (Cast Steel)
2
Pcs
47.5
9
CJ0911-01-9
Adjustment Seat
–
ZG (Cast Steel)
1
Pcs
178
10
CJ0911-02-2
Movable Jaw Body
–
ZG (Cast Steel)
1
Pcs
5178
11
CJ0911-02-3
Front Toggle Plate Pad
–
35# Steel
1
Pcs
39
12
CJ0911-10
Rear Toggle Plate Pad
–
35# Steel
1
Pcs
39
13
CJ0911-01-8.1
Front Wall Plate
–
ZG (Cast Steel)
1
Pcs
4226
14
CJ0911-01-8.3
Rear Wall Plate
–
ZG (Cast Steel)
1
Pcs
2030
15
CJ0911-01-1
Fixed Jaw Positioning Block
–
ZG (Cast Steel)
1
Pcs
108
16
CJ0911-02-25
Movable Jaw Positioning Block
–
ZG (Cast Steel)
1
Pcs
98
17
CJ0911-02-13
Intermediate Labyrinth Ring
–
ZG (Cast Steel)
2
Pcs
45
18
CJ0911-02-14
Bearing Seat
–
ZG (Cast Steel)
2
Pcs
513
19
CJ0911-01-2
Fixed Jaw Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
1360
20
CJ0911-01-3
Lower Left Side Guard Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
175.2
21
CJ0911-01-4
Lower Right Side Guard Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
175.2
22
CJ0911-01-5
Upper Left Side Guard Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
286
23
CJ0911-01-6
Upper Right Side Guard Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
286
24
CJ0911-01-7
Fixed Pressure Block
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
75.1
25
CJ0911-02-1
Movable Jaw Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
1370
26
CJ0911-02-6
Movable Pressure Block
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
75.4
27
CJ0911-02-7
Movable Jaw Guard Plate
–
ZGMn13Cr2 (High Manganese Steel)
1
Pcs
187.6
28
CJ0911-02-21
Lock Nut
–
ZG (Cast Steel)
2
Pcs
17
29
CJ0911-03
Toggle Plate
–
Q235 Steel
1
Pcs
190
30
CJ0911-02-9
Eccentric Shaft
–
40Cr Alloy Steel
1
Pcs
1740.33
Liming-Pew860-Jaw-Plate
Besides HENAN LIMING PEW860 Jaw Plate , what other wear parts can we customize?
SAIKUANG holds a vast mold inventory of an extensive well-known HSI brands including: Hazemag, Mesto, Kleemann, Sandvik, Rockster, Rubble Master, Powerscreen, Evoquip, Striker, Keestrack, McCloskey, Eagle, Tesab, Finlay, KPI-JCI (ASTEC), SBM, Telsmith, Hartl, Lippmann, and others.
You can CONTACT US for a pattern list of the available jaw plates. OR quote us the correct model numbers with the materials you require.
