Saikuang Casting is a leading manufacturer of premium-quality jaw plates,wall plate, and counterweight block for HENAN LIMING PEW760 Jaw Plate series jaw crushers.
We specialize in producing OEM-equivalent jaw plates and developing customized alloy solutions for primary and secondary crushers to effectively minimize equipment downtime.
Our wear parts are manufactured using:Chrome iron，Ceramic chromium iron，Manganese steel，Titanium carbide (TiC) reinforced manganese steel，Martensitic， Ceramic Martensitic，All of these materials are renowned for their excellent wear resistance and operational stability.
“All brand names, model names or marks are property of their respective manufacturers. SAIKUANG and OEMs. These terms are used for identification purposes only and are not intended to indicate affiliation with or approval by the OEM. All parts are manufactured, warrantied by SAIKUANG and are not manufactured, purchased or warrantied by the OEM.”
Contact us
Please leave your specific needs and contact information, and the staff will contact you as soon as possible!
The PEW760 jaw crusher is a versatile machine designed to crush hard and soft materials like granite, marble, basalt, limestone, and iron ore (up to 245MPa compressive strength). Widely used in mining, aggregate production, and construction waste recycling, its efficiency depends on high-quality wear parts. At Saikuang Casting, we specialize in manufacturingPEW760 jaw crusher partsthat ensure durability, energy efficiency, and seamless compatibility.
Technical Specifications at a Glance
Feed Opening: 760×1100mm
Max Feed Size: 640mm
Discharge Range: 75-200mm
Capacity: 150-350 tons/hour
Motor Power: 110-132kW
Weight: 24 tons

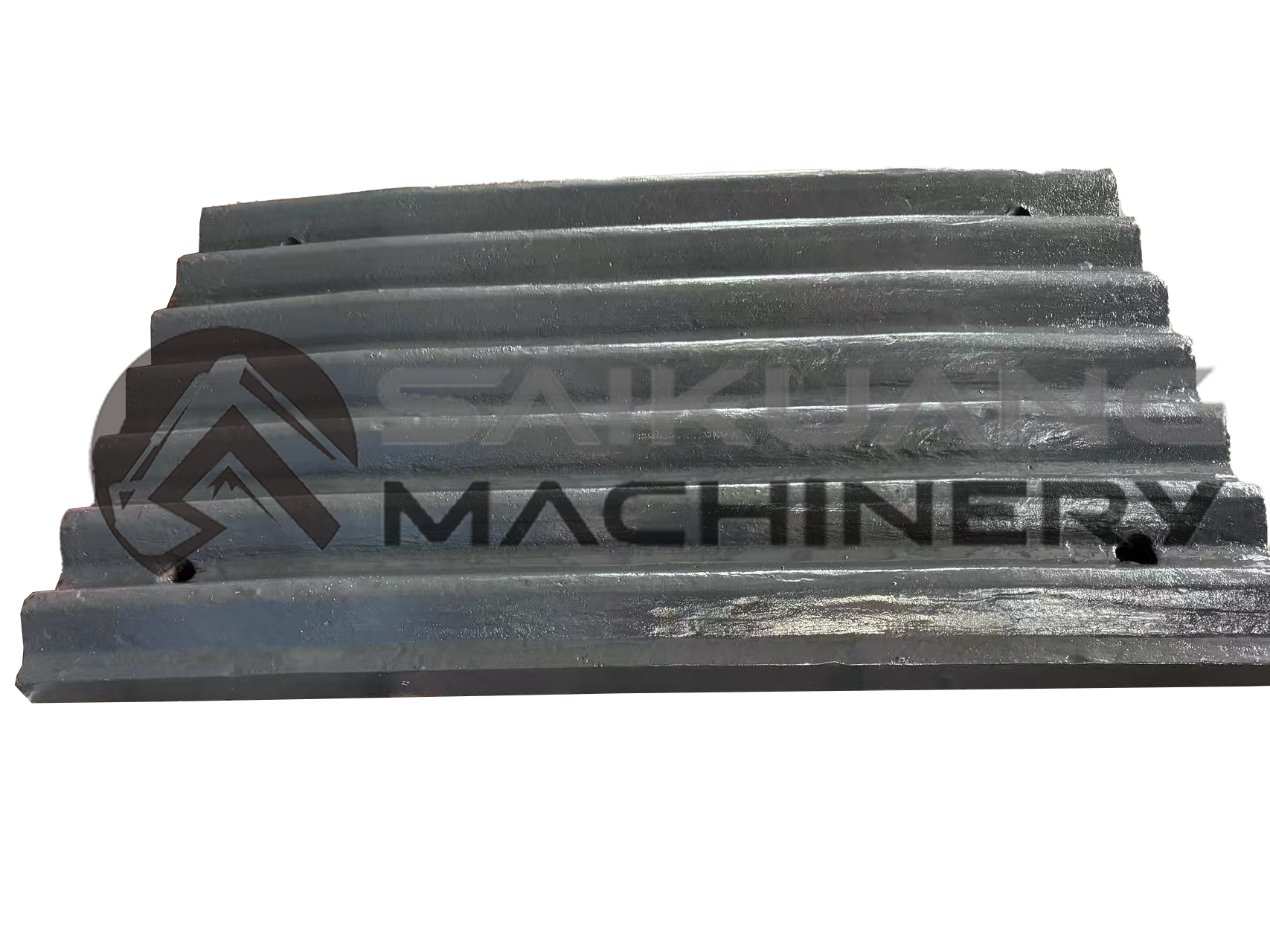

Saikuang Casting: HENAN LIMING PEW760 Jaw Plate
The PEW760 jaw crusher serves as a workhorse in mining and aggregate industries, specifically engineered for processing hard materials like granite, basalt, and iron ore. However, its operational efficiency fundamentally depends on the quality of its vulnerable parts, with the most important component being HENAN LIMING PEW760 Jaw Plate.
SAIKUANG Machinery manufactures HENAN LIMING PEW760 Jaw Plate specifically engineered to enhance the crushing performance of LIMING PEW760 crushers. As the core component of the crushing process, these jaw plates are typically made of high manganese steel or high-chromium alloy. They deliver excellent performance and durability while significantly reducing machine downtime and improving energy efficiency.
To maintain optimal crusher performance, using high-quality, precisely matched replacement parts is essential. The HENAN LIMING PEW760 Jaw Plate, along with other wear parts like Wall Plate and Block, can be sourced from specialized suppliers like SAIKUANG Casting. These replacement components are manufactured under strict quality control systems, guaranteeing 100% adherence to the original dimensions and performance standards of the genuine HENAN LIMING PEW760 Jaw Plate, ensuring seamless integration and reliable operation.
HENAN LIMING PEW760 Impact Crusher Parts List
No.
Name
Model
Weight
1
Fixed Plate Positioning Block
760*1100
141 kg
2
Movable Plate Positioning Block
760*1100
106.5 kg
3
Rear Wall Plate
760*1100
1647.5 kg
4
Rear Toggle Plate Pad
760*1100
51 kg
5
Inner Labyrinth Ring
760*1100
50 kg
6
Front Wall Plate
760*1100
3320 kg
7
Front Toggle Plate Pad
760*1100
47 kg
8
Adjustment Wedge Block
760*1100
217 kg
9
Outer Labyrinth Ring
760*1100
42 kg
10
Intermediate Labyrinth Ring
760*1100
37 kg
11
Bearing Seat
760*1100
467 kg
12
Motor Pulley
760*1100
195 kg
13
Inner Cover Plate
760*1100
54 kg
14
Pulley & Flywheel
760*1100
1455 kg
15
Motor Pulley
760*1100
195 kg
16
Motor Pulley (60Hz)
760*1100
150 kg
17
Pulley & Flywheel
760*1100
1425 kg
18
Movable Jaw
–
3820 kg
19
Fixed Jaw Plate
760*1100
1130 kg
20
Movable Jaw Plate
760*1100
1171 kg
21
Upper Right Side Guard Plate
760*1100
190 kg
22
Upper Left Side Guard Plate
760*1100
199 kg
23
Lower Right Side Guard Plate
760*1100
130 kg
24
Lower Left Side Guard Plate
760*1100
124.78 kg
Liming-Pew760-Jaw-Plate
Besides HENAN LIMING PEW760 Jaw Plate , what other wear parts can we customize?
SAIKUANG holds a vast mold inventory of an extensive well-known HSI brands including: Hazemag, Mesto, Kleemann, Sandvik, Rockster, Rubble Master, Powerscreen, Evoquip, Striker, Keestrack, McCloskey, Eagle, Tesab, Finlay, KPI-JCI (ASTEC), SBM, Telsmith, Hartl, Lippmann, and others.
You can CONTACT US for a pattern list of the available jaw plates. OR quote us the correct model numbers with the materials you require.
