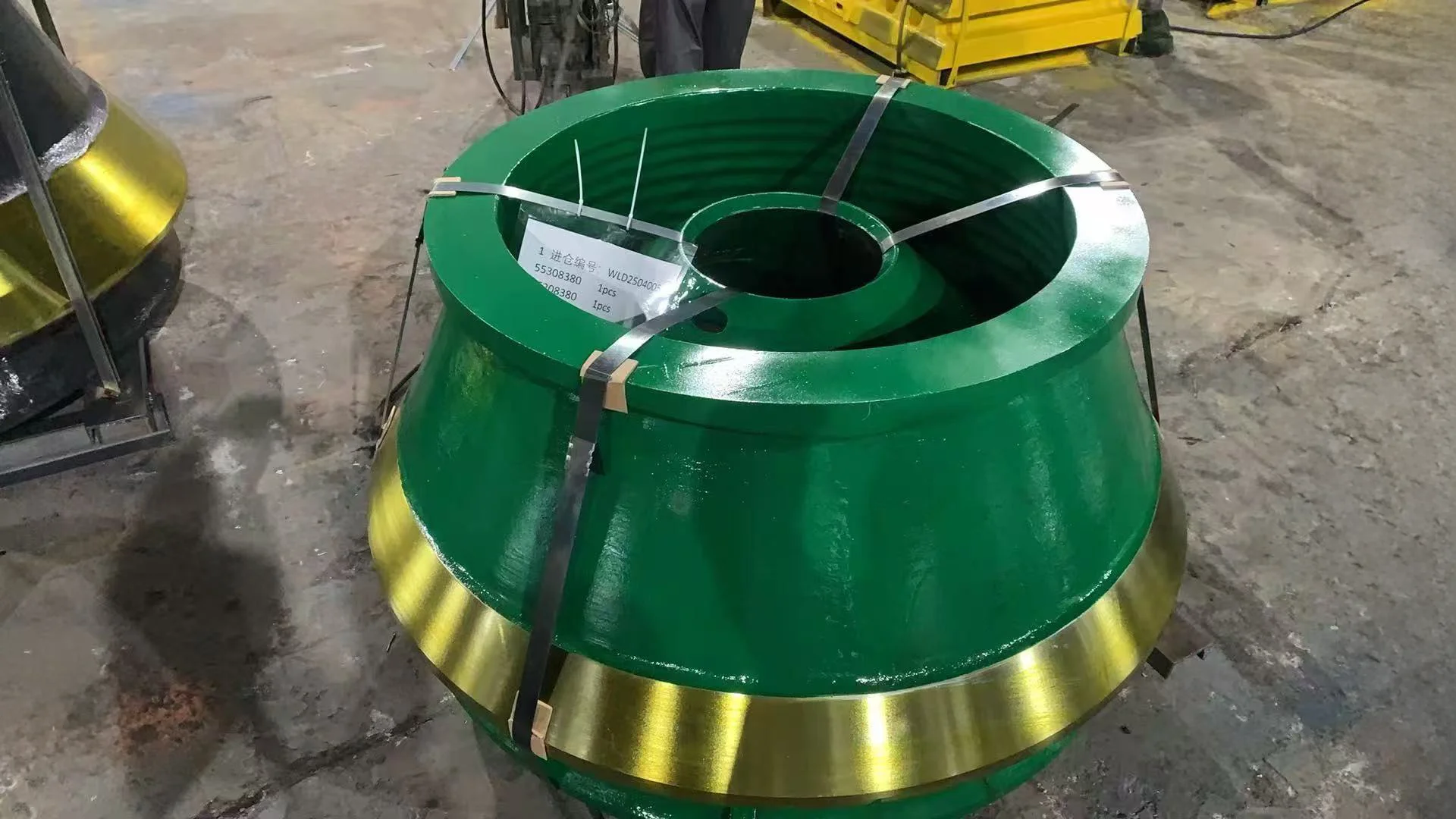

Mantle & Bowl Liner
cone crusher mantles and bowl liners are the two essential wear parts that do the actual “crushing” in a cone crusher.
- Cone Crusher Mantle:The mantle is the moving wear part that gyrates (spins in an eccentric oval path) inside the crusher. It’s fixed onto the main shaft and is the central core of the crushing chamber.

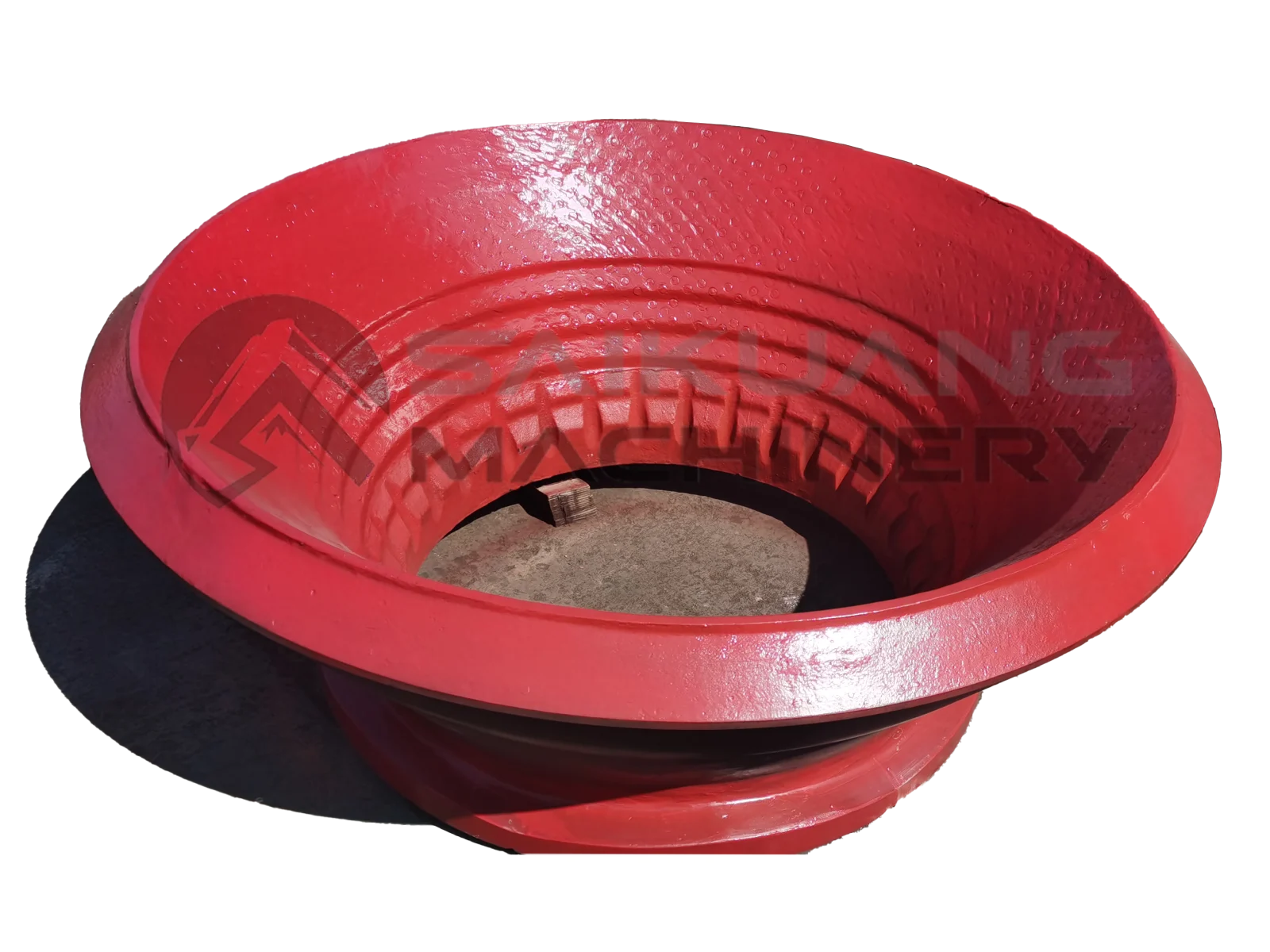

- Cone Crusher Bowl Liner:The bowl liner is the stationary wear part. It is a concave surface that is fixed inside the adjusting ring (the top part of the crusher’s main frame).
As the most frequently replaced mantles & bowl liners in a cone crusher, the quality of mantles & bowl liners directly determines crushing efficiency and overall operational uptime.
Features & Benefits of SAIKUANG mantles & bowl liners
- Material Variety: Available in MN13CR2, M18CR2, and M22CR2 alloy grades for flexible selection
- Custom Tooth Design: Tailored tooth profiles and sizes to optimize performance and extend wear life
- Advanced Wear Resistance: Titanium Carbide (TiC) insert options for extreme applications, delivering incredible service life
- Complete Solution: One-stop service for all crusher parts, ensuring compatibility and consistent quality
Manganese mantle and the bowl liner
Manganese mantle and the bowl linere exhibits distinct performance characteristics and application scopes.the manganese content increases (from MN13Cr2 to MN22Cr2), the overall strength and wear resistance
- MN13Cr2:Suitable formantle and the bowl liner subjected to moderate load requirements,Commonly used in medium-wear levels of cone crushers, ideal for scenarios requiring high wearing with moderate demands on durability and strength.
- MN18Cr2:Offers enhanced wear resistance and strength compared to MN13Cr2.Appropriate for mantle and the bowl liner in moderate to high overload conditions.
- MN22Cr2:Features the highest wear resistance and strength among the three grades, designed for extreme overload scenarios.Primarily used in high-wear environments such as mining equipment or industrial applications with high abrasive loading requirements. Ideal for scenarios needing exceptional wear resistance and impact resistance.
Titanium Carbide (TiC) mantle and the bowl liner
Product Concept:
TiC-embedded mantle and the bowl liner utilize advanced composite technology to significantly extend wear part service life in high-load crushing applications. By dispersing titanium carbide particles within the base metal matrix, these plates deliver superior performance in demanding mining and aggregate operations.
Performance Benefits:
- 3-5x longer service life compared to standard manganese steel
- Reduced downtime for component replacement
- Improved crushing efficiency in hard rock applications
- Proven results in European, Australian and African markets
These advanced mantle and the bowl liner represent the optimal solution for operations seeking to maximize equipment uptime and reduce long-term operating costs.
Premium Cone Crusher Liners Made by SAIKUANG Casting
SAIKUANG Casting “Genuine Alternative” mantles and concaves are cast according to the OEM standard and then heavy machined to meet the specification and tolerance. We are proud to provide our clients with a diverse range of needs.
From mantles weighing as little as 100 kilograms to huge gyrotary crusher liners exceeding 10 tons, we have the ability to deliver them with precision and efficiency.
After decades of accumulation, we have successfully cast over a thousand types of mantle and bowl liners. And we have kept the most molds of the popular models in stock, which allows us to expedite casting and delivery processes efficiently.

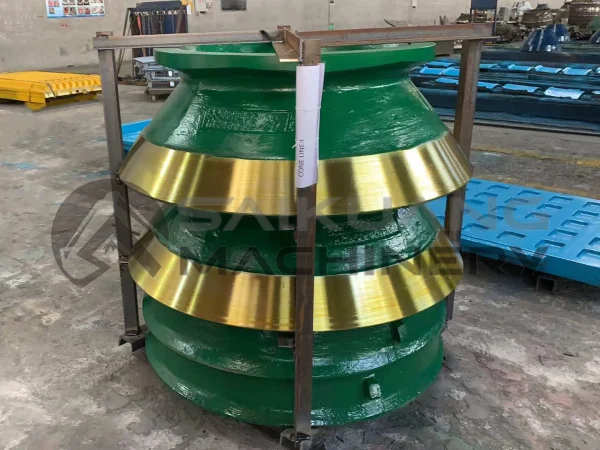

Exclusive Metso HP300 Cone Crusher Liners
Metso HP300 Cone Crusher Liners Saikuang Casting is a leading manufacturer of…
Get an Instant Quote by Sending OEM Part Number
Supported Models*
| Nordberg Symons | Nordberg Omnicone | Nordberg HP Series | Nordberg GP Series | Nordberg MP Series | Metso MX Series | Lokotrack LT Series |
|---|---|---|---|---|---|---|
| 2′ 3′ 4′ 4¼’ 4800 5½’ 5100 7′ |
1144 1352 1560 937 |

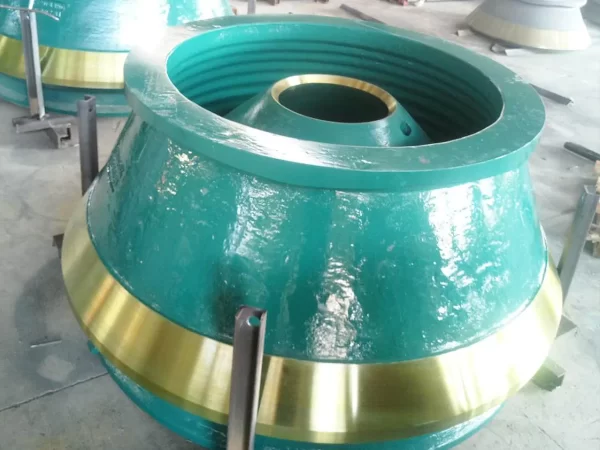

HP100 HP200 HP3 HP300 HP4 HP400 HP5 HP500 HP6 HP900 |
GP100 GP100S GP220 GP200S GP330 GP300S GP550 GP500S GP7 |
MP800 MP1000 MP1250 MP2500 |
MX3 MX4 |
LT200HPS LT200HP LT300HP LT300GP LT220D LT330D |
| Terex Powerscreen | Terex Finlay | Terex Cedarapids | Terex Cedarapids |
|---|---|---|---|
| 1000 Maxtrak 1000SR 1150 Maxtrak 1300 Maxtrak 1500 Maxtrak |
C-1554 C-1550 C-1550P C-1545 C-1545P C-1540 C-1540P C-1540RS |
TC1000 TC1150 TC1300 TG120 TG220 TG320 TG420 TG820 TG1020 |
TGS120 TGS220 TGS320 TGS420 MVP380X MVP450X MVP550X |
| Sandvik CH Series | Sandvik CS Series | Sandvik QH Series |
|---|---|---|
| CH420 CH430 CH440 CH660 CH830i CH840i CH860i CH865i CH870i CH890i CH895i |
CS420 CS430 CS440 CS660 CS840i |
QH441 QH332 QS332 UH640 US440E US440i UH440i UH440E |
| Flsmidth Raptor Series | Telsmith Titan Series | Telsmith SBS & SBX Series | McCloskey C Series |
|---|---|---|---|
| Raptor 200 Raptor 300 Raptor 400 Raptor 500 Raptor 600 Raptor 900 Raptor 1000 Raptor 1100 Raptor 1300 Raptor 2000 |
T200 T300 T400 T500 |

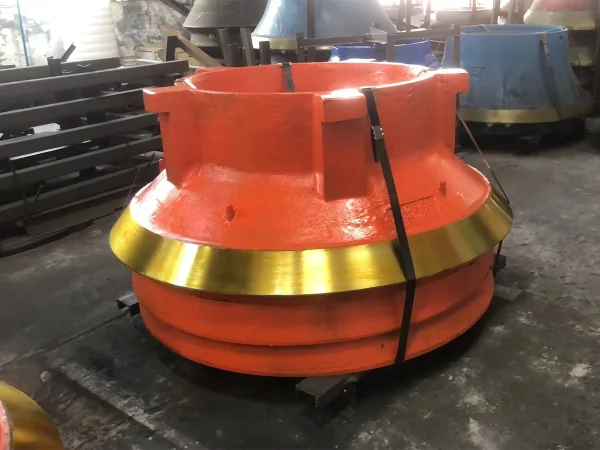

38 SBS 44 SBS 52 SBS 57 SBS 68 SBS 44 SBX 52 SBX 57 SBX |
C2 C2R C3 C3R C4 |
*NOTE: All manufacturer names, part numbers, model numbers, and descriptions are used for reference and identification purposes only, they are owned by the respective machine manufacturer. All parts supplied are manufactured and warranted by SAIKUANG Casting and are not manufactured by or purchased from the Original Equipment Manufacturer. SAIKUANG Casting has no association with the OEM and does not intend to give this impression.
