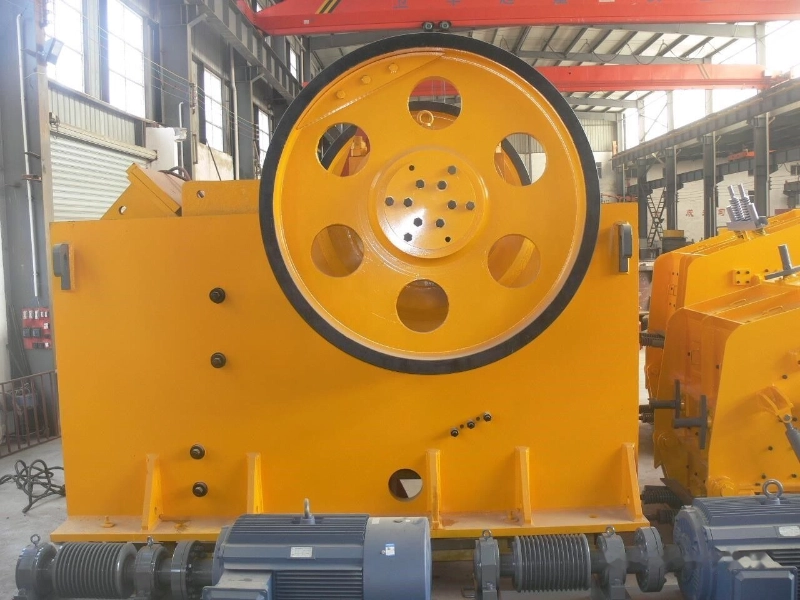

PE1200x1500 Jaw Crusher Parts: Reliable Solutions for Heavy-Duty Crushing
The PE1200×1500 jaw crusher stands as an industry workhorse across mining, quarrying, and construction sectors, engineered to process oversized feed materials up to 1020mm while maintaining exceptional production capacities of 400-1000 tons per hour. To preserve this level of crushing efficiency, premium replacement components become essential.
At Saikuang Casting, we focus on producing heavy-duty, PE1200x1500 Jaw Crusher Parts that guarantee maximum operational continuity, lower power consumption, and prolonged crusher service life.
PE1200x1500 Jaw Crusher Product Specifications
| Model | PE1200X1500 |
| Feeding Size | 120-1500 Mm |
| Capacity | 1-2200 T/H |
| Motor Power | 5.5-380Kw |
| Weight | 0.8-150.6T |
| Dimensions | 720*660*850-6210*4013*4716 Mm |
| Material | High-Quality Steel |
| Features | High Strength, Easy Adjustment, Durable Bearings, Primary Crushing, Efficient Operation, Reliable Design, Long Lifespan |
PE1200x1500 Jaw Crusher Main Manufacturers
- Shanghai SBM
- Shanghai Zenith
- Shanghai Shanbao
- Henan Liming
SAIKUANG Casting’s PE1200x1500 Jaw Crusher Parts Catalogue:
| No. | Drawing No. | Name | Specification | Material | Quantity | Unit | Unit Weight (Kg) |
|---|---|---|---|---|---|---|---|
| 1 | 02–10 | Pulley & Flywheel | – | HT (Grey Cast Iron) | 1 each | Pcs | 4354.4 |
| 2 | 06–03 | Motor Pulley | – | HT (Grey Cast Iron) | 1 | Pcs | 310 |
| 3 | – | Frame Outer Cover | – | ZG (Cast Steel) | 2 | Pcs | 170 |
| 4 | – | Frame Inner Cover | – | ZG (Cast Steel) | 2 | Pcs | 132 |
| 5 | 02–03 | Toggle Plate Pad Body | – | ZG (Cast Steel) | 2 | Pcs | 92.2 |
| 6 | 02–13 | Movable Jaw Cover | – | ZG (Cast Steel) | 2 | Pcs | 144.3 |
| 7 | 02–14 | Movable Jaw Seal Ring | – | ZG (Cast Steel) | 2 | Pcs | 95.7 |
| 8 | 02–01 | Movable Jaw Guard Plate | – | ZG (Cast Steel) | 1 | Pcs | 750 |
| 9 | 02–15 | Lower Side Guard Plate | – | ZGMn13-3 (High Manganese Steel) | 2 | Pcs | 280 |
| 10 | 01–11 | Upper Side Guard Plate | – | ZGMn13-3 (High Manganese Steel) | 2 | Pcs | 702 |
| 11 | 01–02 | Fixed Jaw Plate | – | ZGMn13-4 (High Manganese Steel) | 2 | Pcs | 1480 |
| 12 | 02–02 | Movable Tooth Plate 1 | – | ZGMn13-4 (High Manganese Steel) | 2 | Pcs | 1567 |
| 13 | 02–03 | Movable Tooth Plate 2 | – | ZGMn13-4 (High Manganese Steel) | 1 | Pcs | 410 |
| 14 | 02–04 | Movable Tooth Plate Wedge Block | – | ZGMn13-4 (High Manganese Steel) | 1 | Pcs | 296.6 |
| 15 | – | Toggle Plate | – | Composite Material | – | Pcs | – |
| 16 | 02–11 | Main Shaft | – | – | 1 | Pcs | – |
Why SAIKUANG Casting’s PE1200x1500 Jaw Crusher Parts Stand Out
1. Premium Materials for Extreme Conditions
Our components are precision-engineered from proprietary advanced alloys, specifically formulated to withstand extreme abrasion, intensive impact, and sustained high-pressure environments in demanding crushing applications.
Fixed & Movable Jaw Plates: Manufactured from premium ZGMn13Cr2 high-manganese steel, they undergo specialized heat treatment to achieve superior hardness and exceptional impact resistance through work-hardening capabilities.
Side Plates & Cheek Plates: Enhanced with strategic chromium additives, these components demonstrate significantly improved wear resistance, proven to extend service life by 30-50% compared to standard alternatives in field tests.
Accessories & Integration: Our full range of OEM-compatible accessories—including precision toggle plates, balanced flywheels, and heavy-duty V-belts—ensures perfect fitment and seamless operational integration with your existing system.
All components undergo rigorous quality control procedures, from material certification to dimensional verification, ensuring full compliance with ISO standards and guaranteed compatibility with PE1200×1500 crushers from leading manufacturers including SBM, Zenith, and Shanbao. This comprehensive approach delivers reliable performance and extended operational life for your crushing equipment.
2. Energy Efficiency & Cost Savings
The PE1200×1500’s design reduces energy consumption by 15-30%, lowering operational costs. Our optimized wear parts further enhance this efficiency by minimizing friction and wear.
Key Applications of PE1200x1500 Jaw Crusher Parts
- Mining: Crushing copper, gold, and iron ore.
- Aggregate Production: Processing limestone and granite for road construction.
- Recycling: Reducing demolition waste into reusable materials.
How to Order PE1200x1500 Jaw Crusher Parts
- Submit Requirements: Provide part numbers, drawings, or OEM details.
- Receive a Quote: Get pricing and lead times within 24 hours.
- Track Delivery: Choose air or sea freight with real-time updates.
Upgrade Your Crushing Performance Today
Investing in high-quality wear parts is a long-term investment in the smooth and eicient operation of your business. If you require PE1200x1500 Jaw Crusher Parts or components for other crusher models, please contact us immediately.
We are SK Premium Casting – Your Trusted Partner in Premium Wear Parts.
