Shredder Hammer Parts

Increase your profits and maximize your output with SAIKUANG's Shredder Hammer Parts
Get a Quote Now
Tuff Alloy Steel Hammer

Tuff Alloy Steel Hammer for Metal Scrap Shredding

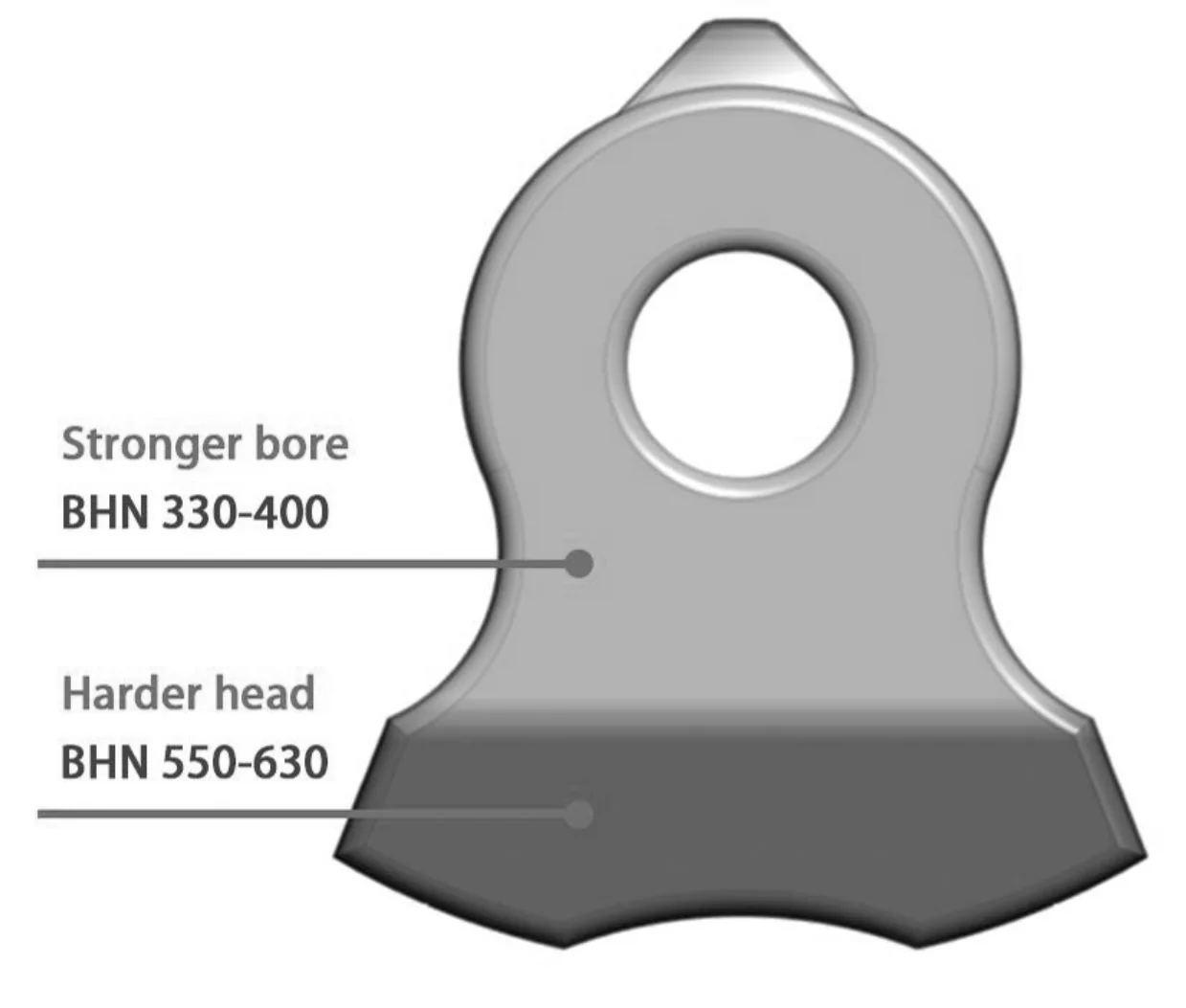

SAIKUANG Tuff Alloy Steel Hammer is specially heat treated to obtain high hardness at wear section and lower hardness plus high strength at bore area.

More
Section Material Code Chemical Hardness Brinell Charpy Impact Advantage
Hammer bore TF55D 40CrNiMo modified 330-400 > 10 (RT ℃,AKV, J)
> 8 (-40 ℃,AKV, J)		 Softer and tougher for longer service life with minimum wear on pin
Hammer head TF55D 40CrNiMo modified 550-630 > 6 (RT ℃,AKV, J)
> 4 (-40 ℃,AKV, J)		 High hardness for longer service life with no break

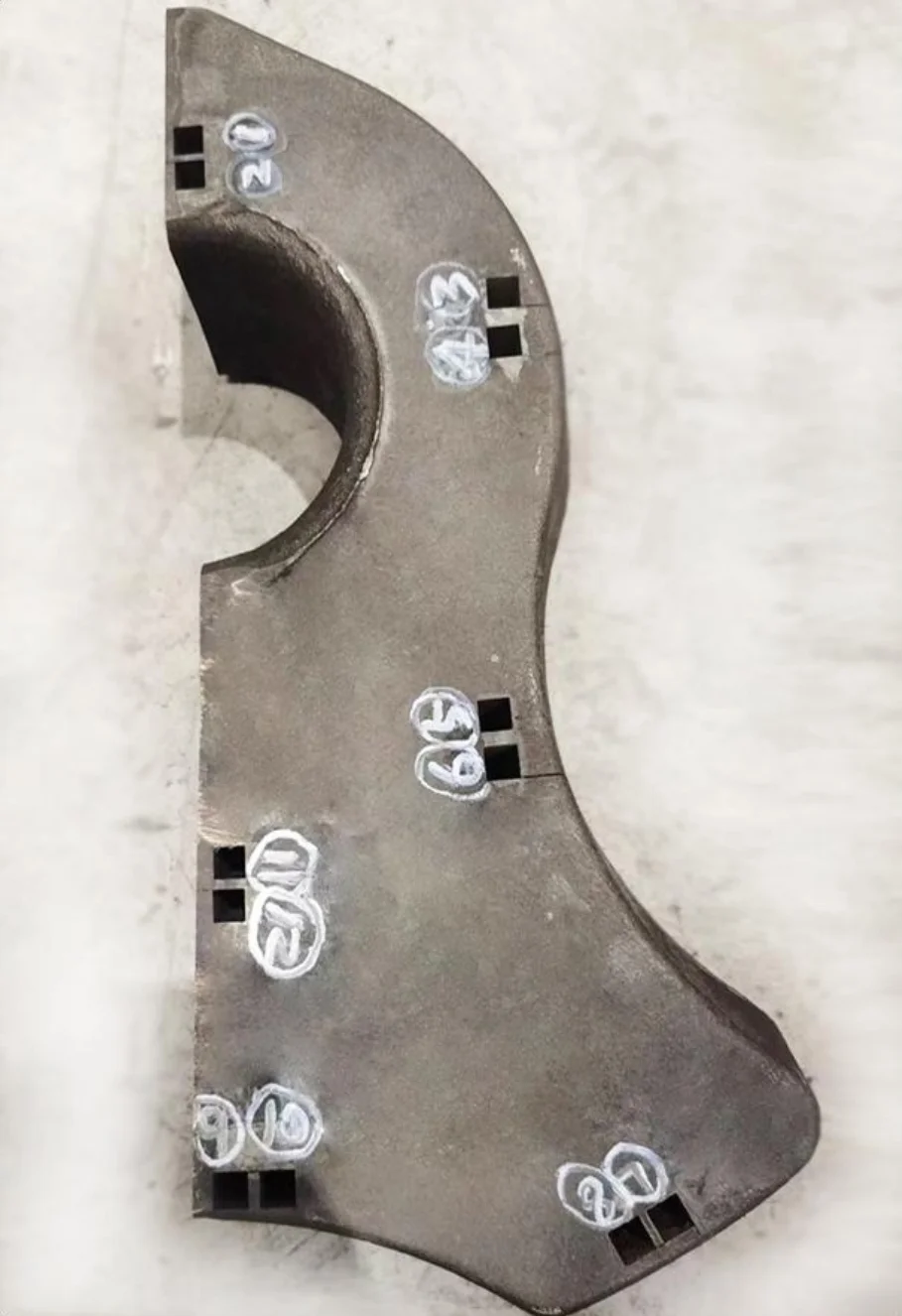

Hammer 5

As the main equipment for the production of concrete aggregates, highways, railways, and urban construction waste, the main wear parts of the impact crusher are the hammer and liner. SAIKUANG Casting’s high-chromium alloy blow bars and breaker plates have been applied to thousands of impact crushers in dozens of countries and regions in Europe, South America, the Middle East, Africa and North America, and has won the trust and praise of customers for its high hardness, wear resistance and strong toughness. The blow bars and liners produced by SAIKUANG Casting are mainly made of high chromium alloy castings, which are refined through special treatment and are suitable for various solutions. It has the best micro-grain structure and sufficient toughness after quenching and tempering heat treatment, and the hardness can reach above HRC60.
